Запчасти Case IH JX1085C (1.40.6/07) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING

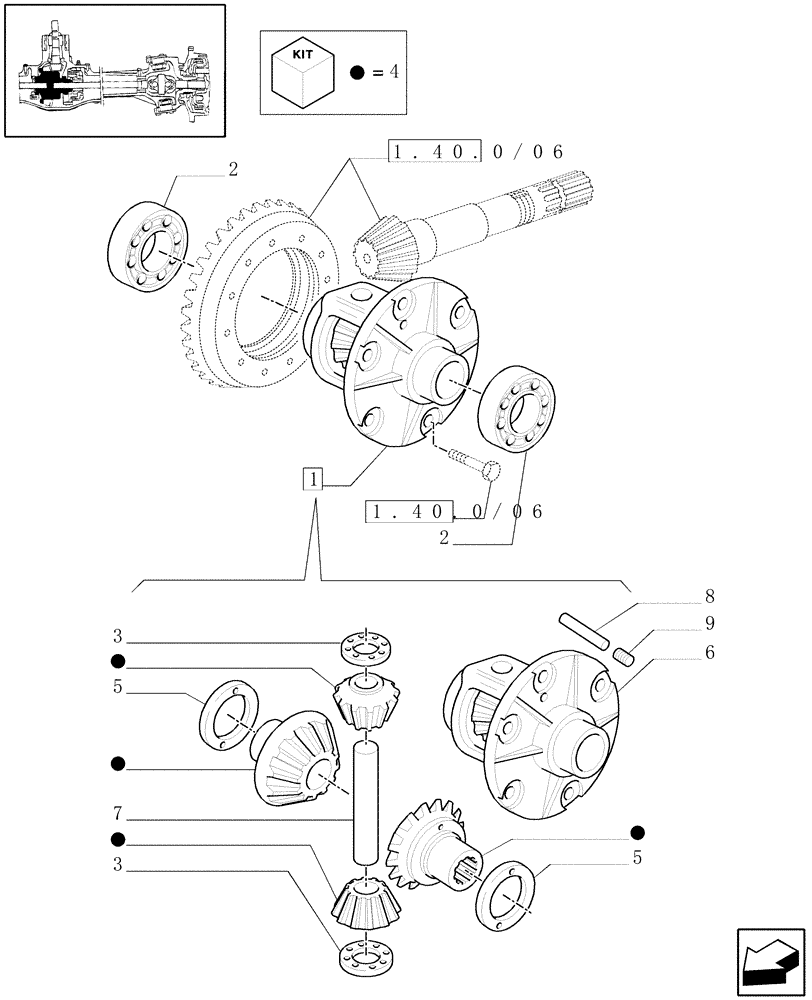

Схема запчастей Case IH JX1085C - (1.40.6/07) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING
4
2
7
5
4
4
3
6
3
2
1.40.0/06
4
4
5
1
4
9
1.40.0/06
8

Артикул

Название

Примечание

Количество

1

5167879

DIFFERENTIAL GEAR

ASSY

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

50x90x21.75

2шт.

3

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

2шт.

4

87523074

KIT

1шт.

5

5167655

THRUST WASHER,30.2mm ID x 54mm OD x 1.5mm Thk

1шт.

5

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

1шт.

5

5167702

THRUST WASHER,30.2mm ID x 54mm OD x 1.7mm Thk

1шт.

5

5167703

THRUST WASHER,30.2mm ID x 54mm OD x 1.8mm Thk

1шт.

5

5183693

THRUST WASHER,30.2mm ID x 54mm OD x 1.9mm Thk

1шт.

5

5183694

THRUST WASHER,30.2mm ID x 54mm OD x 2mm Thk

1шт.

6

5174802

HOUSING

1шт.

7

5103612

PIN,22mm OD x 123mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

Выбрано товаров: 14
