(1.40.5/17) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H)- PIPES

Запчасти Case IH JX1085C (1.40.5/17) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H)- PIPES (04) - FRONT AXLE & STEERING

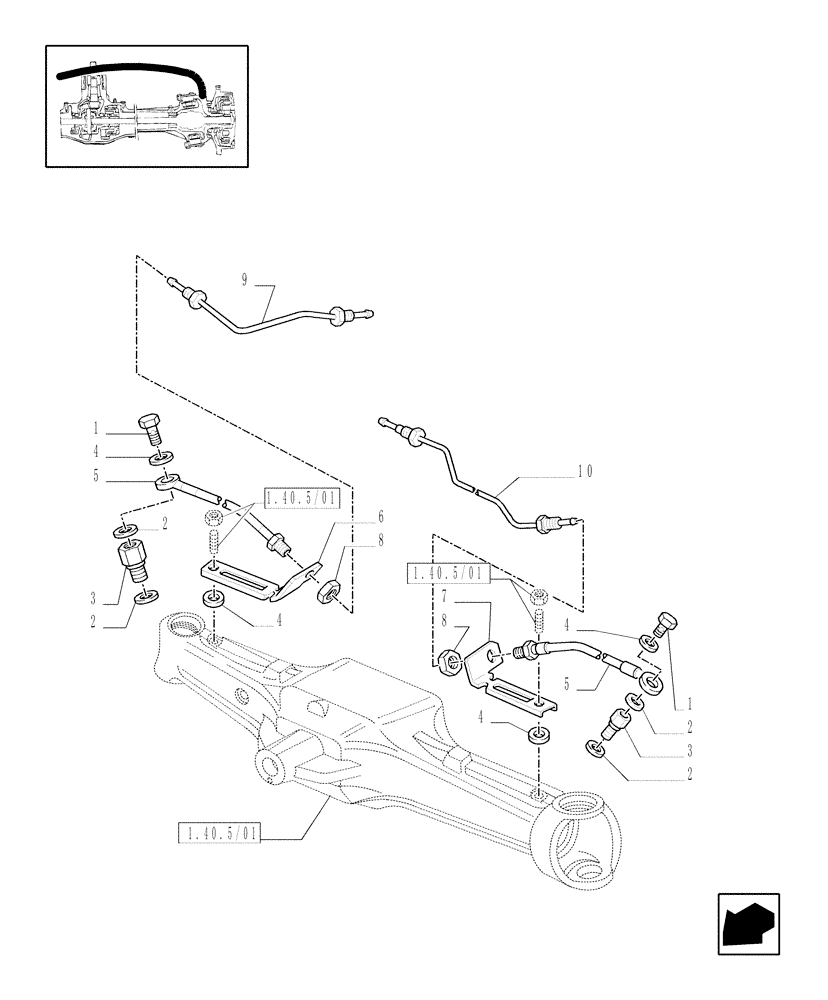

Схема запчастей Case IH JX1085C - (1.40.5/17) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H)- PIPES (04) - FRONT AXLE & STEERING
3
1.40.5/01
4
5
2
7
4
10
8
9
2
8
1
4
1
1.40.5/01
2
6
3
1.40.5/01
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

15x18x1.5

4шт.

3

5182367

HYD CONNECTOR

2шт.

4

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

5

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

6

5182988

BRACKET

RH

1шт.

7

5182989

ELBOW

LH

1шт.

8

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

9

47132777

RIGID TUBE

RH

1шт.

10

47132778

RIGID TUBE

LH

1шт.
