Запчасти Case IH JX1085C (1.40.5/10[02]) - (VAR.326/2) STANDARD FRONT AXLE W/ ELECTROH. DIFF. LOCK, L/ BRAKES (30KM/H)-EPICYCLIC REDUCTION GEAR (04) - FRONT AXLE & STEERING

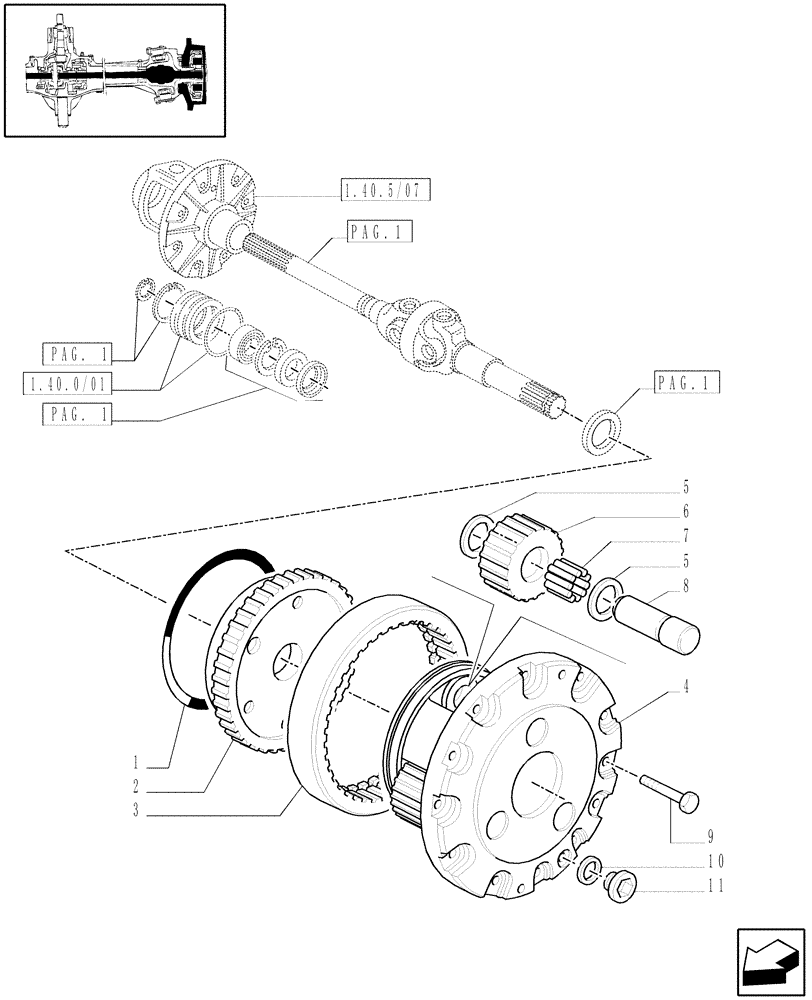

Схема запчастей Case IH JX1085C - (1.40.5/10[02]) - (VAR.326/2) STANDARD FRONT AXLE W/ ELECTROH. DIFF. LOCK, L/ BRAKES (30KM/H)-EPICYCLIC REDUCTION GEAR (04) - FRONT AXLE & STEERING
7
8
2
1
1.40.5/07
5
11
10
9
pag. 1
5
1.40.0/01
4
pag.1
pag. 1
3
6
pag.1

Артикул

Название

Примечание

Количество

1

5165162

SNAP RING,M50, Int

2шт.

2

5173284

GEAR,60T

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5181049

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25x45x0.8

12шт.

6

5169137

GEAR,23T

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

25.6x35.6x29.8

6шт.

8

5181050

PIN,27mm OD x 63.5mm L

6шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

10275011

PLUG,M22 x 1.5 x 13

2шт.

Выбрано товаров: 11
