Запчасти Case IH JX1085C (1.40.5/08[01]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ELECTROH. DIFFEREN LOCK(30KM/H)-HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING

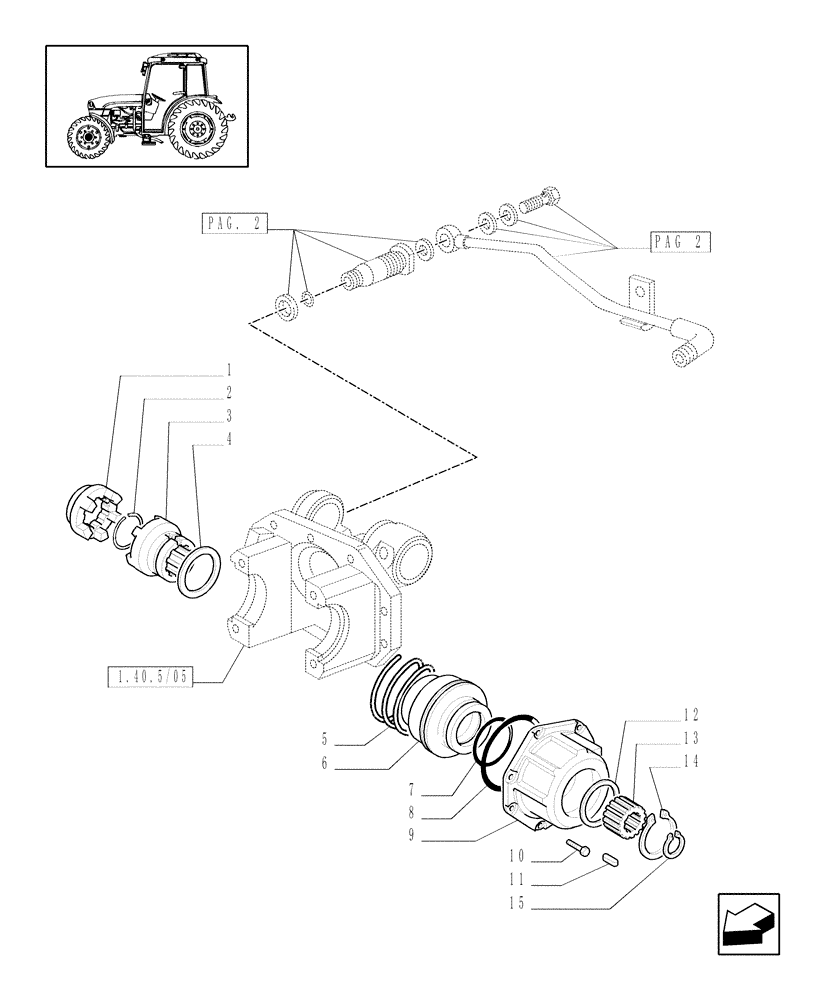

Схема запчастей Case IH JX1085C - (1.40.5/08[01]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ELECTROH. DIFFEREN LOCK(30KM/H)-HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING
6
1
2
12
pag. 2
9
pag 2
3
13
11
14
8
1.40.5/05
15
7
10
4
5

Артикул

Название

Примечание

Количество

1

5167764

SLEEVE,50mm ID x 80mm OD x 29mm L

1шт.

2

5167721

SNAP RING,M50, Int

1шт.

3

5167747

SLEEVE,18T

1шт.

4

5167763

THRUST WASHER,67.5mm ID x 80mm OD x 2.8mm Thk

1шт.

5

5167827

SPRING,Compression, 110mm OD x 75mm L

1шт.

6

5167749

PISTON

1шт.

7

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

1шт.

8

14466581

O-RING,117.07mm ID x 4.887" OD x 3.53mm

1шт.

9

47123536

BELL HOUSING

1шт.

10

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.

11

14724820

KEY,8mm x 7mm x 36mm

1шт.

12

5167748

THRUST WASHER,65.2mm ID x 80mm OD x 3mm Thk

1шт.

13

5167762

GEAR,18T

1шт.

14

11070076

SNAP RING,M65, Ext

1шт.

15

80370003

CIRCLIP

D=30

2шт.

Выбрано товаров: 15
