Запчасти Case IH JX1085C (1.40.5/01) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) - BOX (04) - FRONT AXLE & STEERING

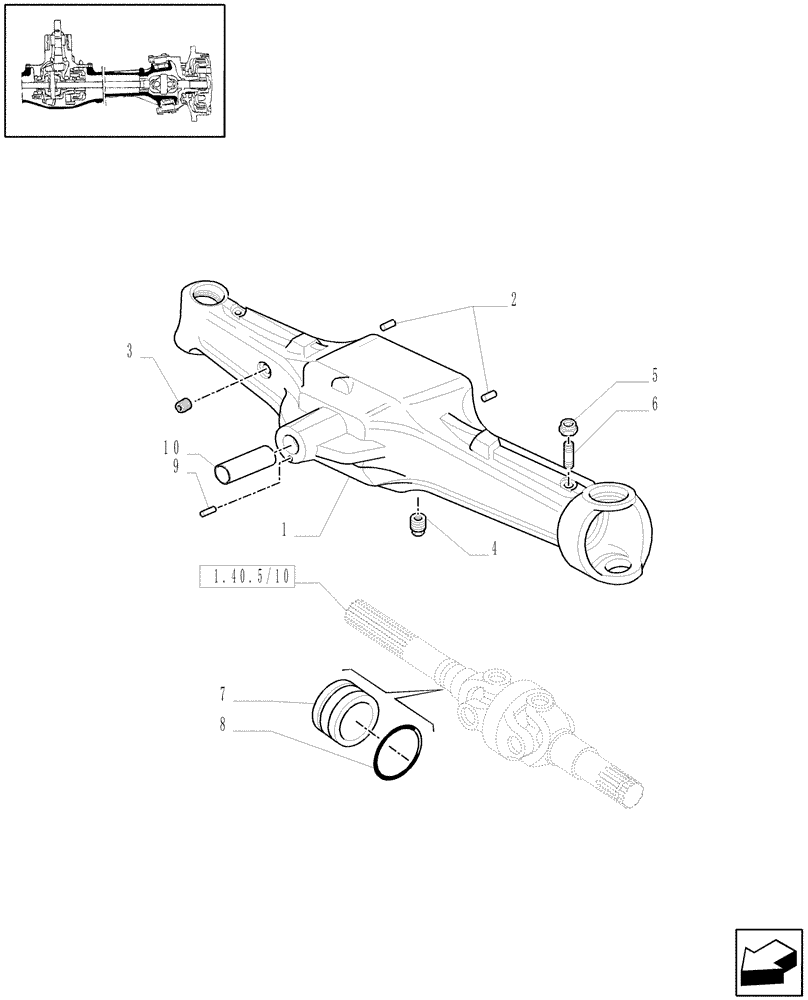

Схема запчастей Case IH JX1085C - (1.40.5/01) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) - BOX (04) - FRONT AXLE & STEERING
10
6
9
8
1
1.40.5/10
7
2
4
5
3

Артикул

Название

Примечание

Количество

1

47131423

AXLE HOUSING

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

2шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

87309002

SET SCREW

M12x1.25x64

2шт.

7

4997348

SLEEVE

, Serial Range: -C5243

2шт.

7

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

, Start Serial: D5243

2шт.

8

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

, Serial Range: -C5243

2шт.

8

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

10

47123533

PIN,52mm OD x 131mm L

1шт.

Выбрано товаров: 12
