(1.40.4/13) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - PIPES

Запчасти Case IH JX1085C (1.40.4/13) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - PIPES (04) - FRONT AXLE & STEERING

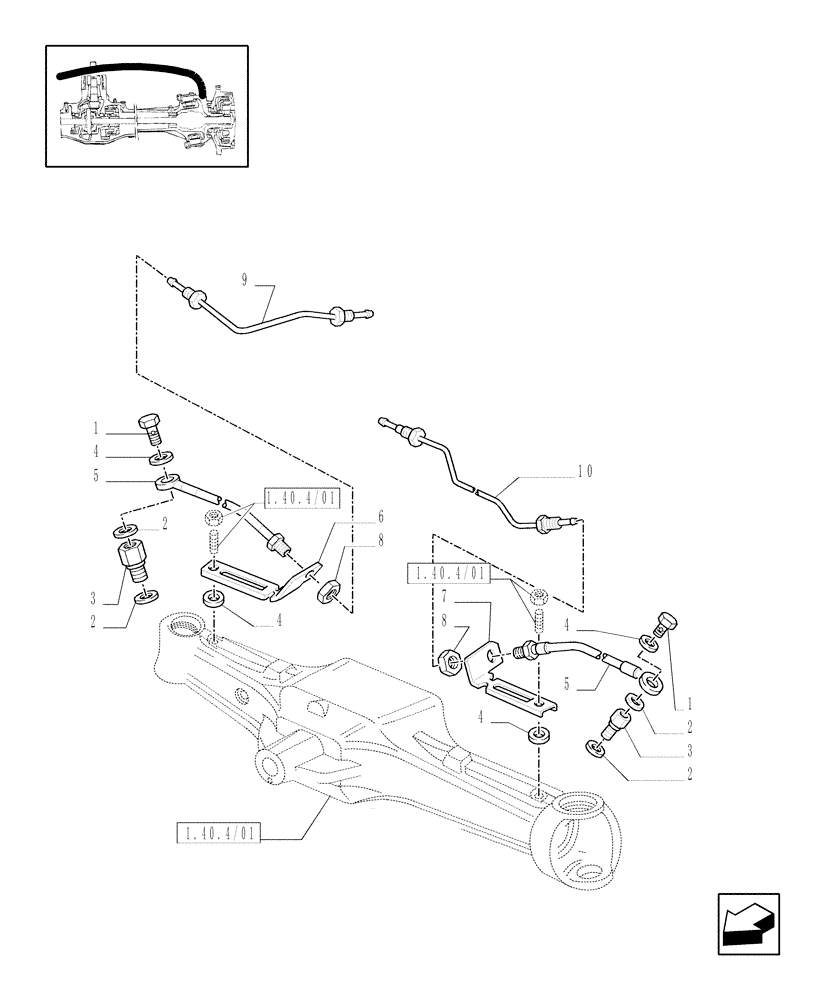

Схема запчастей Case IH JX1085C - (1.40.4/13) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - PIPES (04) - FRONT AXLE & STEERING
2
5
1
4
10
6
1
2
4
1.40.4/01
4
1.40.4/01
2
5
8
3
4
8
7
1.40.4/01
2
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

15x18x1.5

4шт.

3

5182367

HYD CONNECTOR

2шт.

4

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

5

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

6

5182988

BRACKET

RH

1шт.

7

5182989

ELBOW

LH

1шт.

8

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

9

47132777

RIGID TUBE

RH

1шт.

10

47132778

RIGID TUBE

LH

1шт.
