Запчасти Case IH JX1085C (1.40.4/10[02]) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - DIFFER. GEARS AND SHAFT (04) - FRONT AXLE & STEERING

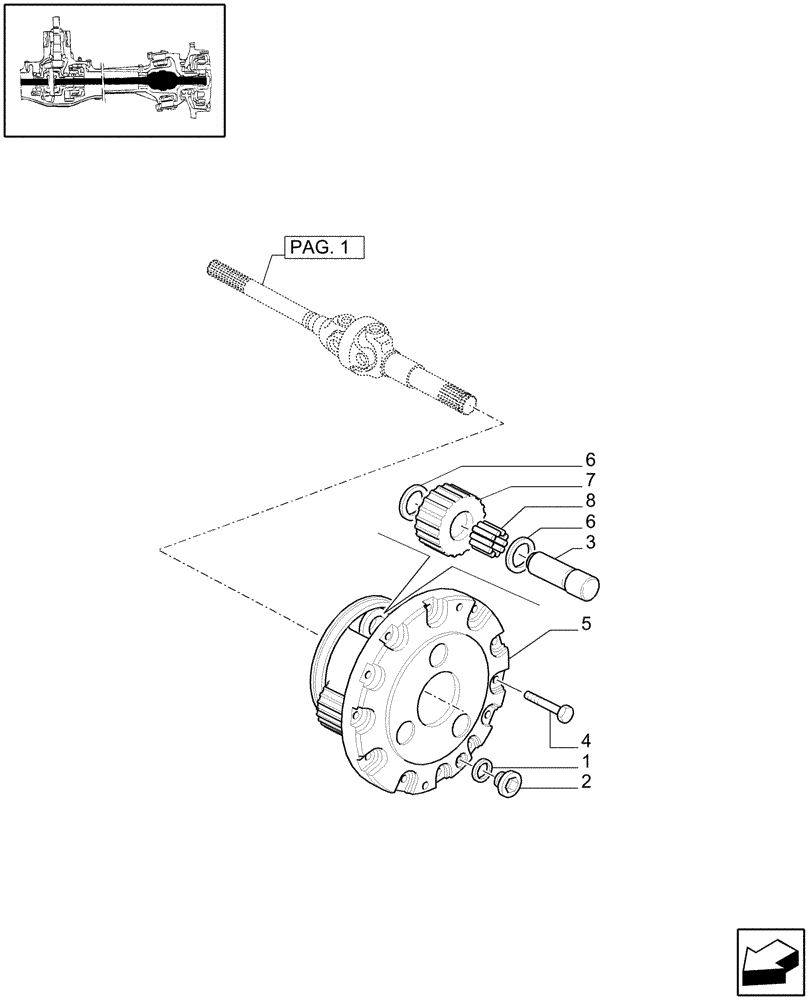

Схема запчастей Case IH JX1085C - (1.40.4/10[02]) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - DIFFER. GEARS AND SHAFT (04) - FRONT AXLE & STEERING
6
pag. 1
5
2
6
8
7
3
4
1

Артикул

Название

Примечание

Количество

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

10275011

PLUG,M22 x 1.5 x 13

2шт.

3

5181050

PIN,27mm OD x 63.5mm L

6шт.

4

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

5

5181049

SUPPORT

ASSY

2шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

MM.0.8

12шт.

7

5169137

GEAR,23T

6шт.

8

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

6шт.

Выбрано товаров: 8
