Запчасти Case IH JX1085C (1.40.4/10[01]) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - DIFFER. GEARS AND SHAFT (04) - FRONT AXLE & STEERING

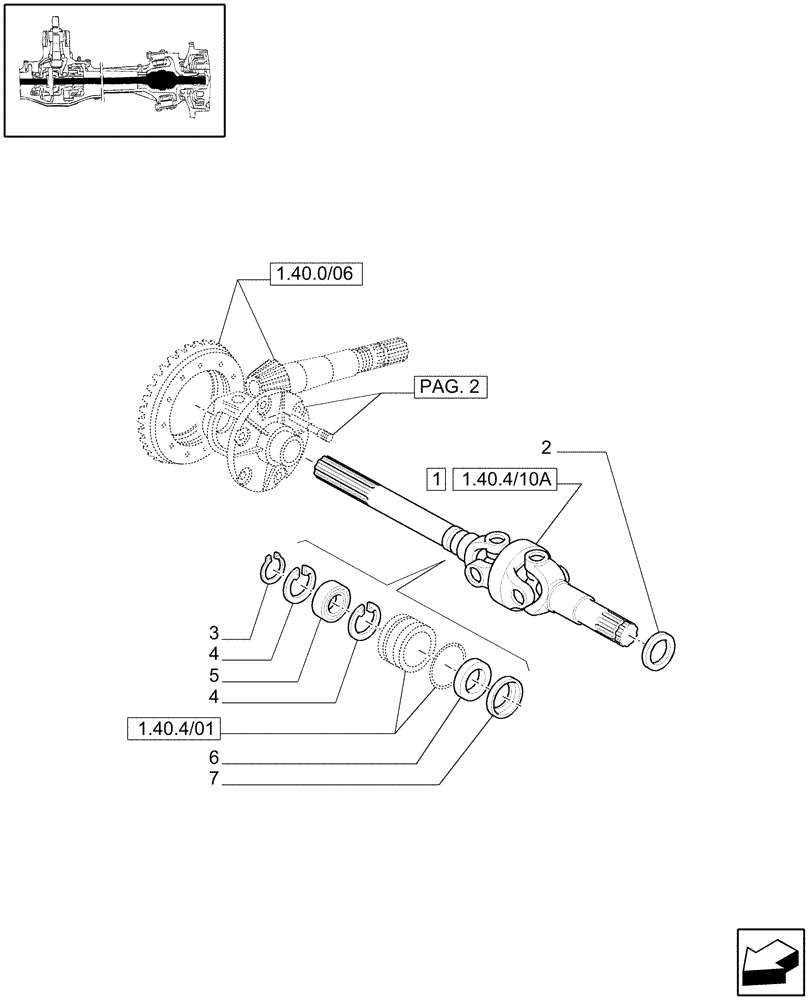

Схема запчастей Case IH JX1085C - (1.40.4/10[01]) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFER. MEC. W/FRONT BRAKE (40KM/H) - DIFFER. GEARS AND SHAFT (04) - FRONT AXLE & STEERING
3
4
7
1.40.0/06
6
1
pag. 2
1.40.4/01
5
2
4
1.40.4/10a

Артикул

Название

Примечание

Количество

1

5186661

AXLE-SHAFT, ARTICULA

RH

1шт.

1

5186660

ARTICULATED SHAFT

LH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47x65x16.5

2шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
