(1.40.4/08) - (VAR.324-324/1) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MECHANIK - DIFFERENTIAL

Запчасти Case IH JX1085C (1.40.4/08) - (VAR.324-324/1) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MECHANIK - DIFFERENTIAL (04) - FRONT AXLE & STEERING

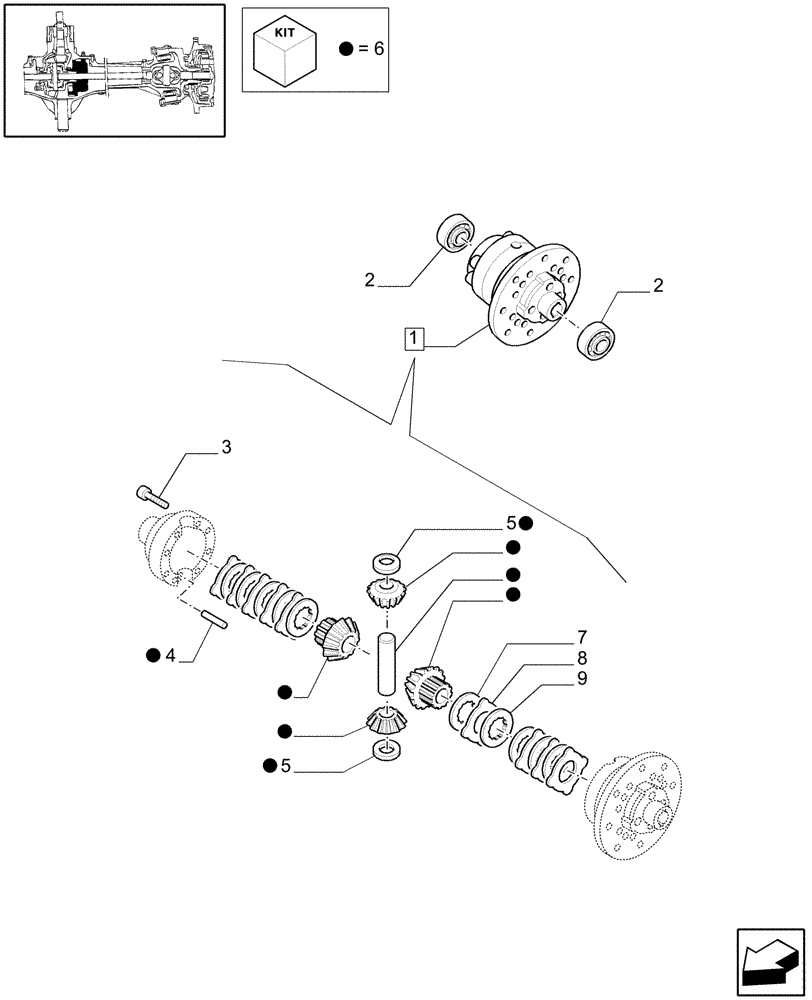

Схема запчастей Case IH JX1085C - (1.40.4/08) - (VAR.324-324/1) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MECHANIK - DIFFERENTIAL (04) - FRONT AXLE & STEERING
5
4
8
6
6
7
6
5
3
6
2
6
6
6
2
1
6
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5162456

DIFFERENTIAL

ASSY

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

2шт.

3

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

8шт.

4

9966303

ROLL PIN

1шт.

5

9966306

WASHER

2шт.

6

9970166

KIT

Gear Repair

1шт.

7

9966308

PLATE

2шт.

8

9966309

DRIVEN PLATE

10шт.

9

9966310

PLATE

8шт.
