Запчасти Case IH JX1085C (1.40.4/03) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MEC. W/FRONT BRAKE (40KM/H) - HUB (04) - FRONT AXLE & STEERING

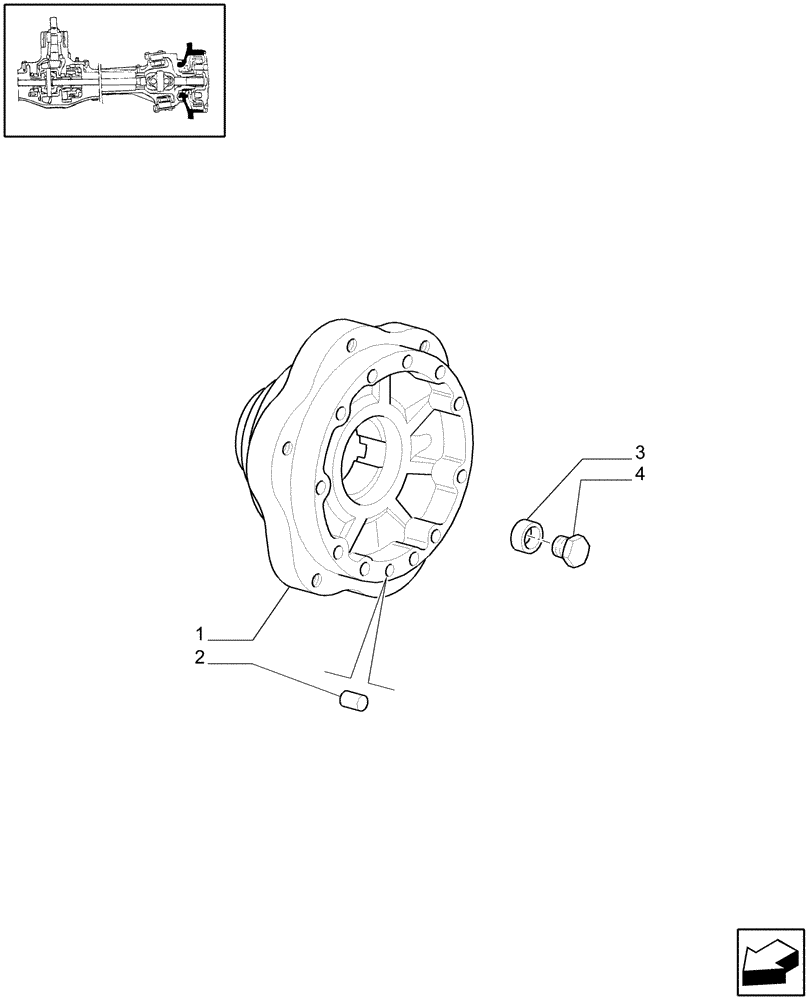

Схема запчастей Case IH JX1085C - (1.40.4/03) - (VAR.324) STANDARD FRONT AXLE W/LOCK, DIFFERENTIAL MEC. W/FRONT BRAKE (40KM/H) - HUB (04) - FRONT AXLE & STEERING
2
1
3
4

Артикул

Название

Примечание

Количество

1

5178631

HUB

, Serial Range: -C5565

2шт.

1

87601194

HUB

, Start Serial: D5565

2шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

Выбрано товаров: 5
