(1.40.2/10A[01]) - FRONT PTO LIFT FOR MDC - HALF-SHAFTS - BREAKDOWN

Запчасти Case IH JX1085C (1.40.2/10A[01]) - FRONT PTO LIFT FOR MDC - HALF-SHAFTS - BREAKDOWN (04) - FRONT AXLE & STEERING

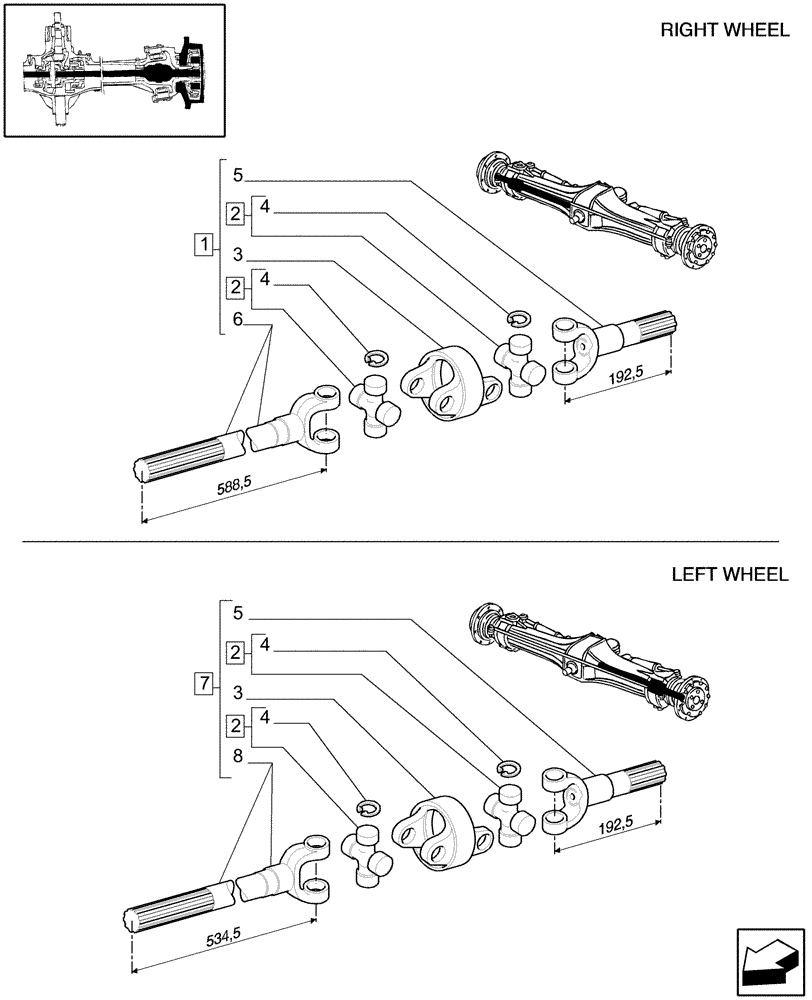

Схема запчастей Case IH JX1085C - (1.40.2/10A[01]) - FRONT PTO LIFT FOR MDC - HALF-SHAFTS - BREAKDOWN (04) - FRONT AXLE & STEERING
2
4
2
2
5
5
6
2
4
8
3
1
4
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186654

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191024

SPIDER

2шт.

3

5191027

YOKE

1шт.

4

5191025

LOCKING RING

8шт.

5

5191412

SHAFT

1шт.

6

5191422

YOKE

1шт.

7

5186653

AXLE-SHAFT, ARTICULA

LH

1шт.

8

5191420

YOKE

1шт.

Выбрано товаров: 8
