(1.40.1/10A) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - PARTS

Запчасти Case IH JX1085C (1.40.1/10A) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - PARTS (04) - FRONT AXLE & STEERING

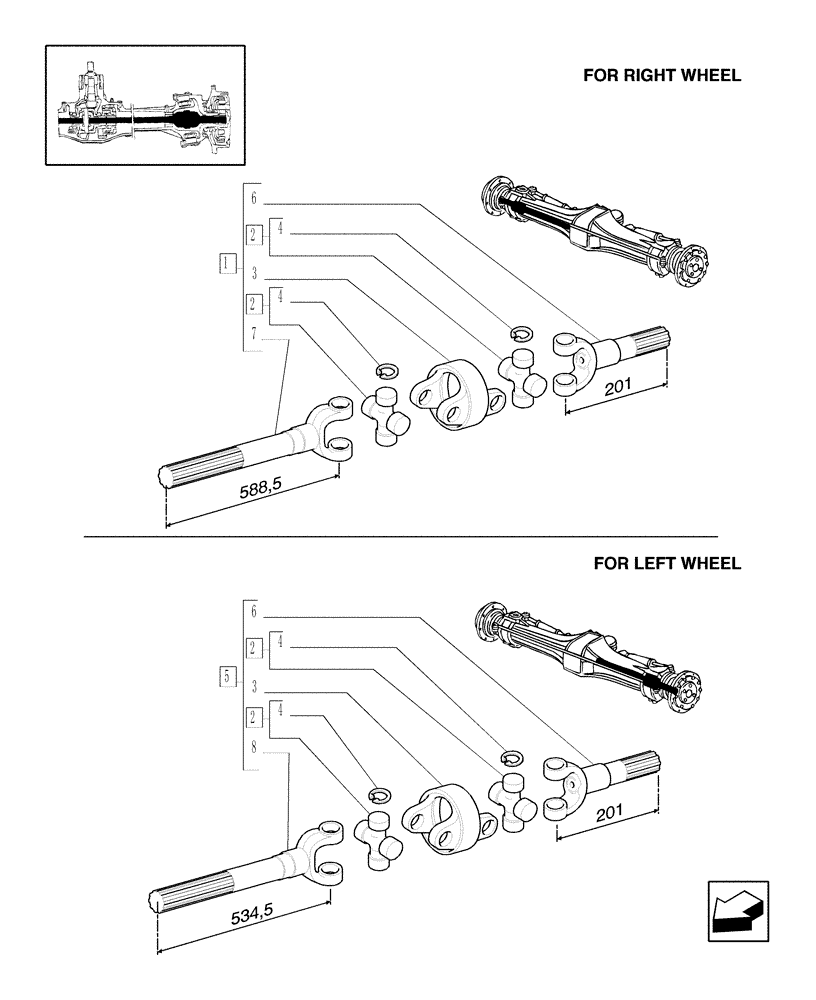

Схема запчастей Case IH JX1085C - (1.40.1/10A) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - PARTS (04) - FRONT AXLE & STEERING
6
3
8
5
2
7
6
2
4
2
4
4
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186659

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191024

SPIDER

2шт.

3

5191027

YOKE

1шт.

4

80278643

CIRCLIP

8шт.

5

5186660

ARTICULATED SHAFT

LH

1шт.

6

5191419

YOKE

1шт.

7

5191422

YOKE

1шт.

8

5191420

YOKE

1шт.
