(1.40.1/10[03]) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - HALF AXLE

Запчасти Case IH JX1085C (1.40.1/10[03]) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - HALF AXLE (04) - FRONT AXLE & STEERING

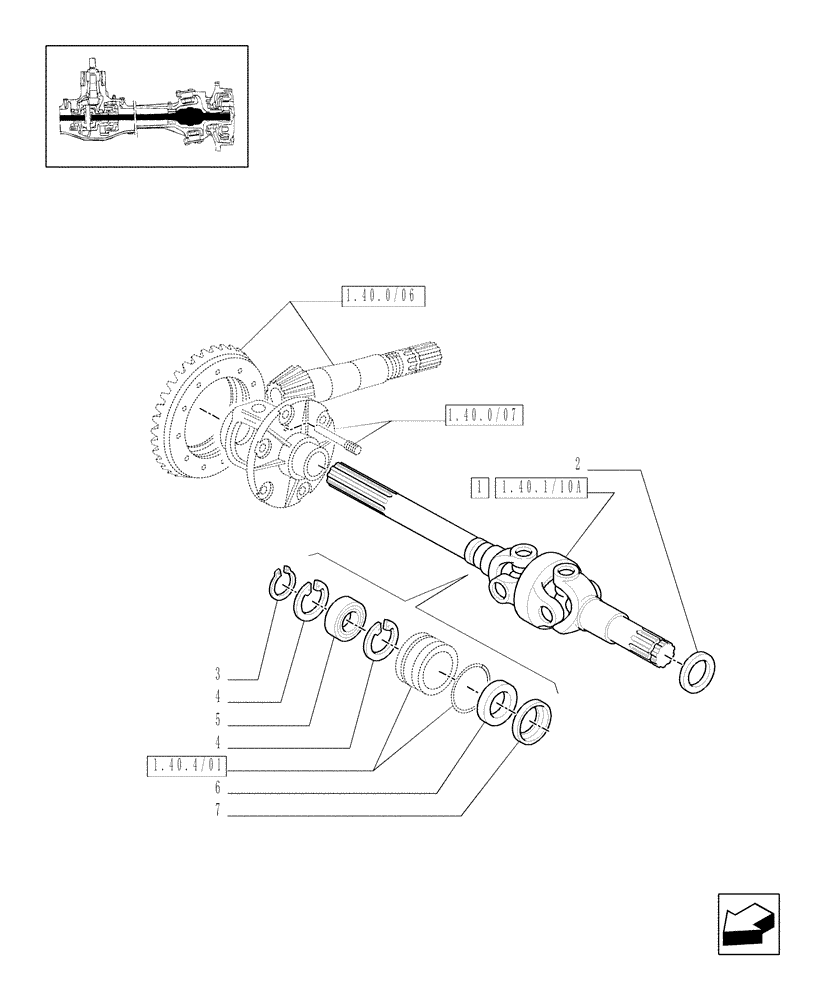

Схема запчастей Case IH JX1085C - (1.40.1/10[03]) - (VAR.323) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (40KM/H) - HALF AXLE (04) - FRONT AXLE & STEERING
3
7
4
2
1.40.0/06
1.40.4/01
6
1
5
1.40.1/10a
1.40.0/07
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186659

AXLE-SHAFT, ARTICULA

ASSY., LH

1шт.

1

5186660

ARTICULATED SHAFT

ASSY., RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

65x47x16.5

2шт.

3

80370003

CIRCLIP

D=30

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
