Запчасти Case IH JX1085C (1.40.0/05) - 4WD FRONT AXLE - SUPPORT (04) - FRONT AXLE & STEERING

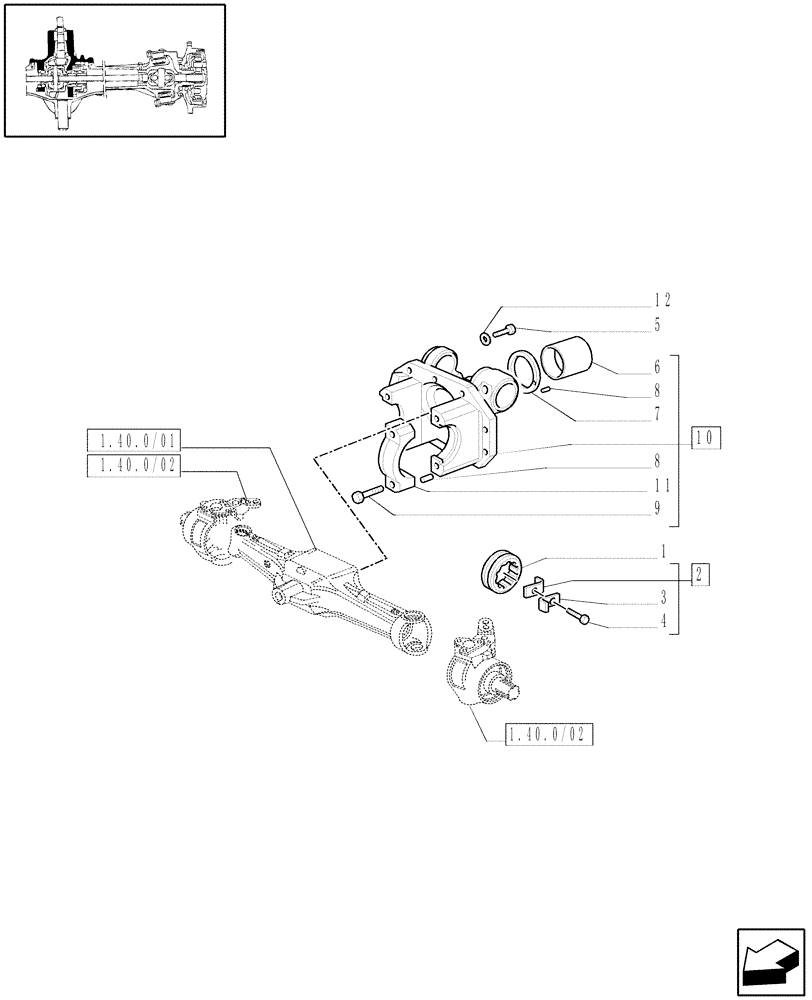

Схема запчастей Case IH JX1085C - (1.40.0/05) - 4WD FRONT AXLE - SUPPORT (04) - FRONT AXLE & STEERING
1
1.40.0/02
10
6
12
11
9
8
7
1.40.0/01
5
4
2
8
3
1.40.0/02

Артикул

Название

Примечание

Количество

1

4966240

BEARING LOCK NUT,M95 x 2, 15T

M95x13

2шт.

2

4966243

ADJUSTING PLATE

2шт.

3

562659

PLATE

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12x1.25x35

3шт.

5

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.25x45

6шт.

5

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M10x1.25x120

1шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

8

4966244

PIN,5mm OD x 15mm L

M5 x 15

3шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

10

87335203

SUPPORT

ASSY

1шт.

11

5165137

SUPPORT

2шт.

12

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

9шт.

Выбрано товаров: 14
