Запчасти Case IH JX1085C (1.40.0/02) - 4WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

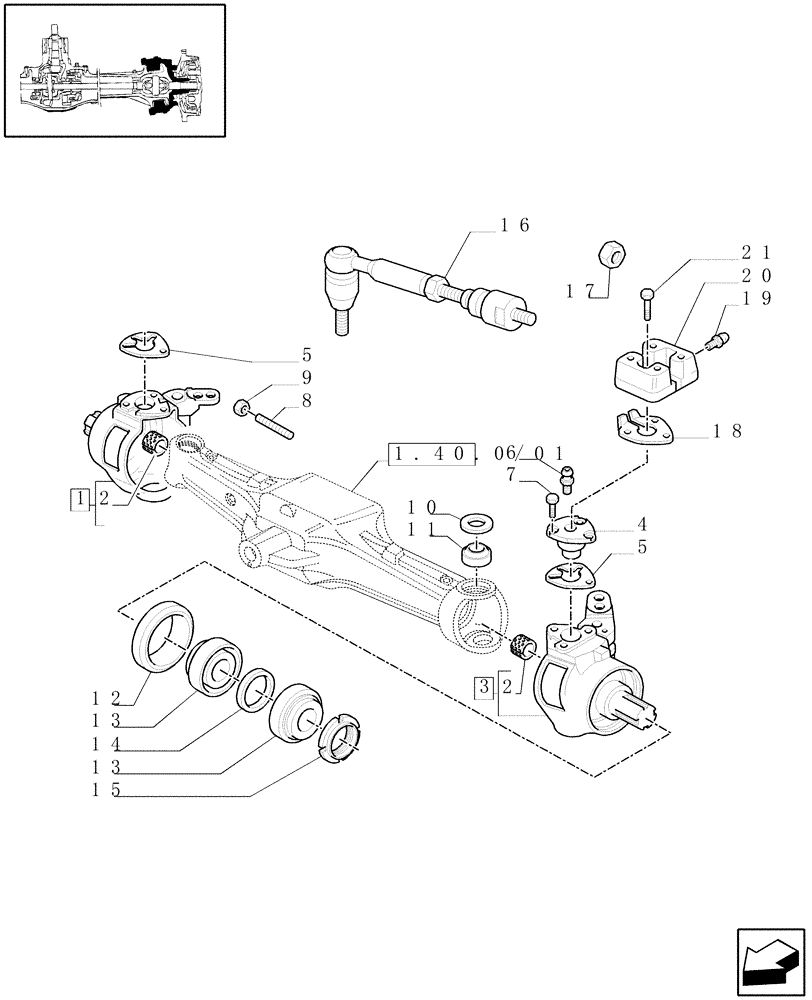

Схема запчастей Case IH JX1085C - (1.40.0/02) - 4WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING
9
5
2
12
6
5
21
10
15
13
2
19
18
17
4
14
8
1.40.0/01
11
13
16
1
7
20
3

Артикул

Название

Примечание

Количество

1

47125377

STUB AXLE/STEERING S

RH, ASSY, Serial Range: -HJH075801

1шт.

1

87538062R

REMAN-AXLE

JX1085C, JX1095C, Both TRACTOR, RH, ASSY, Serial Range: -HJH075801 (10/05-), Reman for New PN 47125377

1шт.

1

87538062C

CORE-AXLE

Return Number

1шт.

1

87538062

STUB AXLE/STEERING S

RH, ASSY, Start Serial: HJH075802

1шт.

1

87538062R

REMAN-AXLE

JX1085C, JX1095C, Both TRACTOR, RH, ASSY, Start Serial: HJH075802 (10/05-)

1шт.

1

87538062C

CORE-AXLE

Return Number

1шт.

2

5105321

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

3

47125375

STUB AXLE/STEERING S

LH, ASSY, Serial Range: -HJH075801

1шт.

3

87538071R

REMAN-AXLE

JX1085C, JX1095C, Both TRACTOR, LH, ASSY, Serial Range: -HJH075801 (10/05-), Reman for New PN 47125375

1шт.

3

87538071C

CORE-AXLE

Return Number

1шт.

3

87538071

STUB AXLE/STEERING S

LH, ASSY, Start Serial: HJH075802

1шт.

3

87538071R

REMAN-AXLE

JX1085C, JX1095C, Both TRACTOR, LH, ASSY, Start Serial: HJH075802 (10/05-)

1шт.

3

87538071C

CORE-AXLE

Return Number

1шт.

4

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

4шт.

5

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

5

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

5

5100791

SHIM,.20mm Thk

1шт.

5

5100792

SHIM,.25mm Thk

1шт.

5

5100793

SHIM,.30mm Thk

1шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

7

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

9

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

10

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

11

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

30x55x17

4шт.

12

5184122

SEAL,130mm ID x 154mm OD x 18mm Thk

154x130x15, Serial Range: -HJH075801

2шт.

12

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

, Start Serial: HJH075802

1шт.

13

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

70x110x21

4шт.

14

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

70x80x12.18

2шт.

15

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH Thread, M70x2

1шт.

15

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH Thread, M70x2

1шт.

16

47125373

TRACK ROD ASSY

2шт.

17

12577011

NUT,M20 x 1.5, Cl 8

2шт.

18

87498939

PLATE

2шт.

Valid for VAR.167, VAR.168

1шт.

19

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

Valid for VAR.167, VAR.168

1шт.

19

13407211

LUBE NIPPLE,M10 x 1

2шт.

Valid for VAR.167, VAR.168

1шт.

20

5182368

PLATE

LH

1шт.

Valid for VAR.167, VAR.168

1шт.

20

5189839

PLATE

RH

1шт.

Valid for VAR.167, VAR.168

1шт.

21

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

Valid for VAR.167, VAR.168

1шт.

21

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

4шт.

Valid for VAR.167, VAR.168

1шт.

21

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

Valid for VAR.167, VAR.168

1шт.

Выбрано товаров: 49
