Запчасти Case IH JX1085C (1.38.5/01[02]) - (VAR.445-449) 4WD RICE FIELD VERSION - FLANGE AND REAR AIRTIGHT GUARD FOR TRANSMISSION SHAFT (04) - FRONT AXLE & STEERING

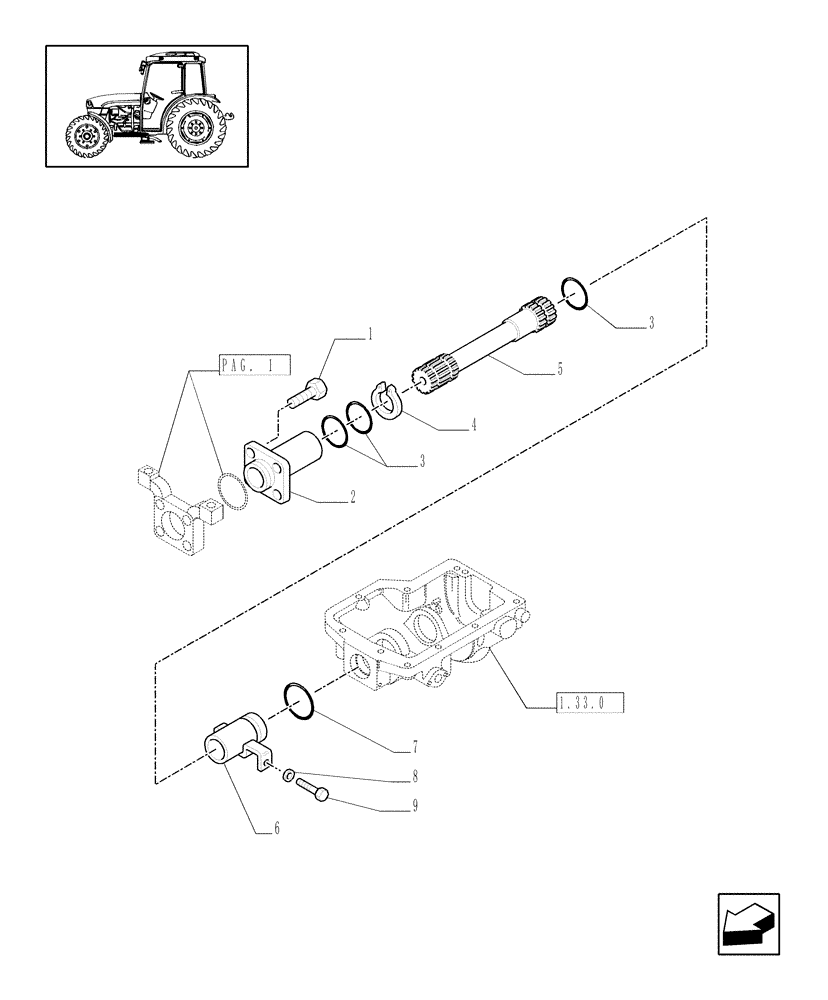

Схема запчастей Case IH JX1085C - (1.38.5/01[02]) - (VAR.445-449) 4WD RICE FIELD VERSION - FLANGE AND REAR AIRTIGHT GUARD FOR TRANSMISSION SHAFT (04) - FRONT AXLE & STEERING
pag. 1
1.33.0
5
9
3
8
4
7
1
2
6
3

Артикул

Название

Примечание

Количество

1

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

2

87310807

FLANGE

Rear

1шт.

3

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

3шт.

4

11069676

SNAP RING,M56, Ext

D=56

1шт.

5

5180749

SHIELD

Rear

1шт.

6

5180752

BUSHING

Rear

1шт.

7

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.

8

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

2шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

Выбрано товаров: 9
