(1.33.2/04[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK (40 KM/H) - SUPPORT

Запчасти Case IH JX1085C (1.33.2/04[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK (40 KM/H) - SUPPORT (04) - FRONT AXLE & STEERING

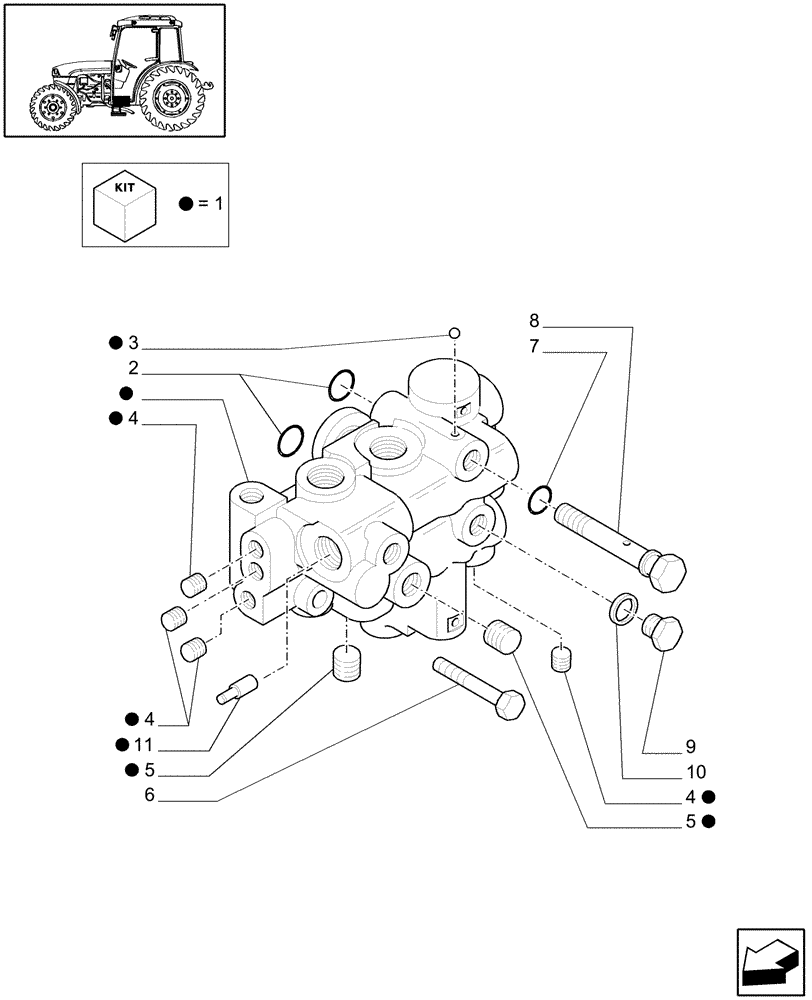

Схема запчастей Case IH JX1085C - (1.33.2/04[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK (40 KM/H) - SUPPORT (04) - FRONT AXLE & STEERING
4
4
1
10
1
1
1
1
9
1
8
4
5
1
5
11
1
2
6
1
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47137763

HYDRAULIC VALVE

ASSY., Valid for VAR.323 (JX1085C) & for VAR.323/1 (JX1085C, JX1095C)

1шт.

1

87304408

BODY

ASSY., Valid for VAR.323 (JX1095C)

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

3

20419150

BALL,3.17mm OD, Gr 100, CRS

1/8"

1шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

5

10269504

PLUG,M14 x 1.5

2шт.

6

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

7

5135731

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

8

5176224

BOLT,Hex, M25 x 1.25 x 107mm L

1шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

10

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

11

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.
