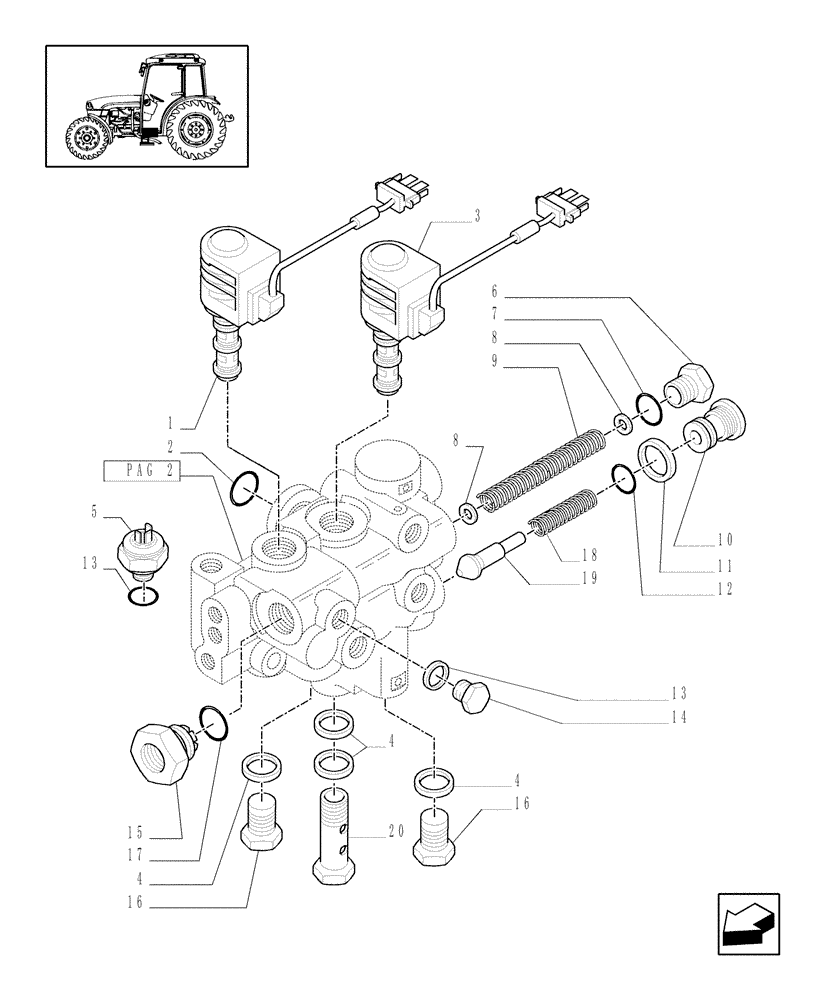

Запчасти Case IH JX1085C (1.33.2/04[01]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK (40 KM/H) - SOLENOID VALVE (04) - FRONT AXLE & STEERING

1

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

2

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

3

5193928

HYDRAULIC VALVE

Differential Lock, W/Diode

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

5

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

6

5176204

PLUG,M18 x 1.5

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

13550101

WASHER

5x11

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26x1.5

1шт.

12

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

2шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

16

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

2шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

18

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

19

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

20

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

M18x1.5x56

1шт.
