Запчасти Case IH JX1085C (1.33.2/02[02]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK - SUPPORT - C5737 (04) - FRONT AXLE & STEERING

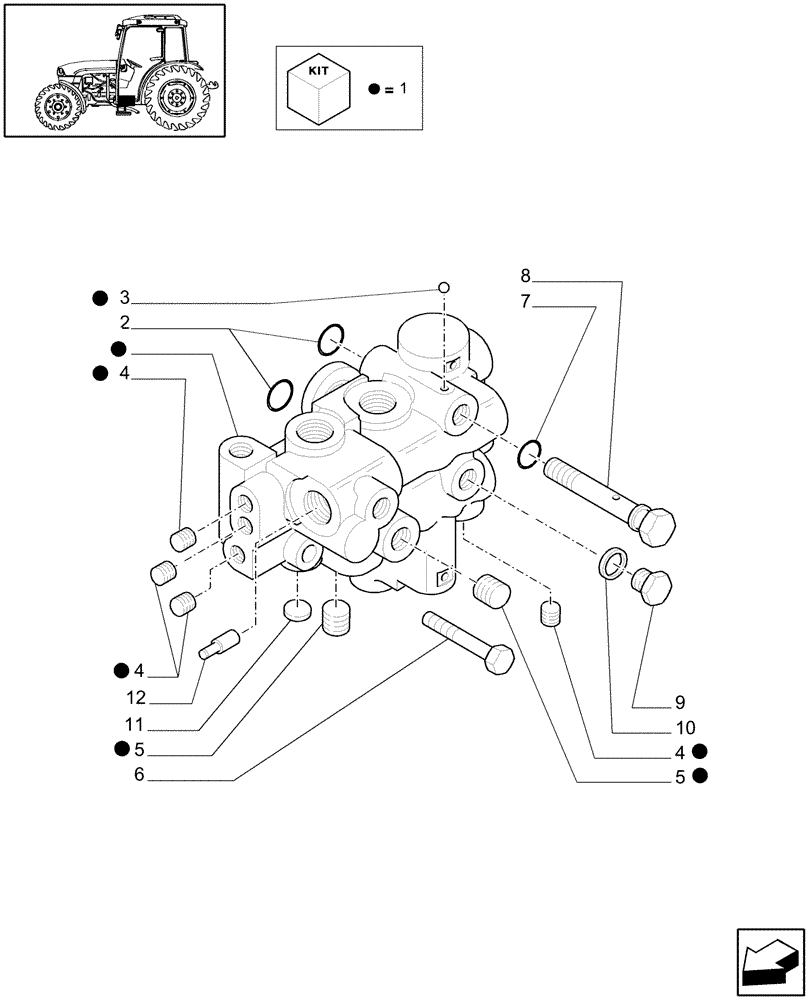

Схема запчастей Case IH JX1085C - (1.33.2/02[02]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK - SUPPORT - C5737 (04) - FRONT AXLE & STEERING
3
11
12
5
4
5
8
2
1
1
1
9
1
7
6
1
1
1
4
1
4
1
10

Артикул

Название

Примечание

Количество

1

47137763

HYDRAULIC VALVE

ASSY

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

3

20419150

BALL,3.17mm OD, Gr 100, CRS

1/8"

1шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

5

10269504

PLUG,M14 x 1.5

M14x1.5

2шт.

6

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

7

5135731

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

8

5176224

BOLT,Hex, M25 x 1.25 x 107mm L

1шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

10

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

11

14328501

PLUG,M16, Tapered

1шт.

12

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

Выбрано товаров: 12
