Запчасти Case IH JX1085C (1.33.2/01[02]) - (VAR.826) "BOSCH" HYDRAULIC PUMP X=64L/MIN WITH HEAT EXCHANGER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING

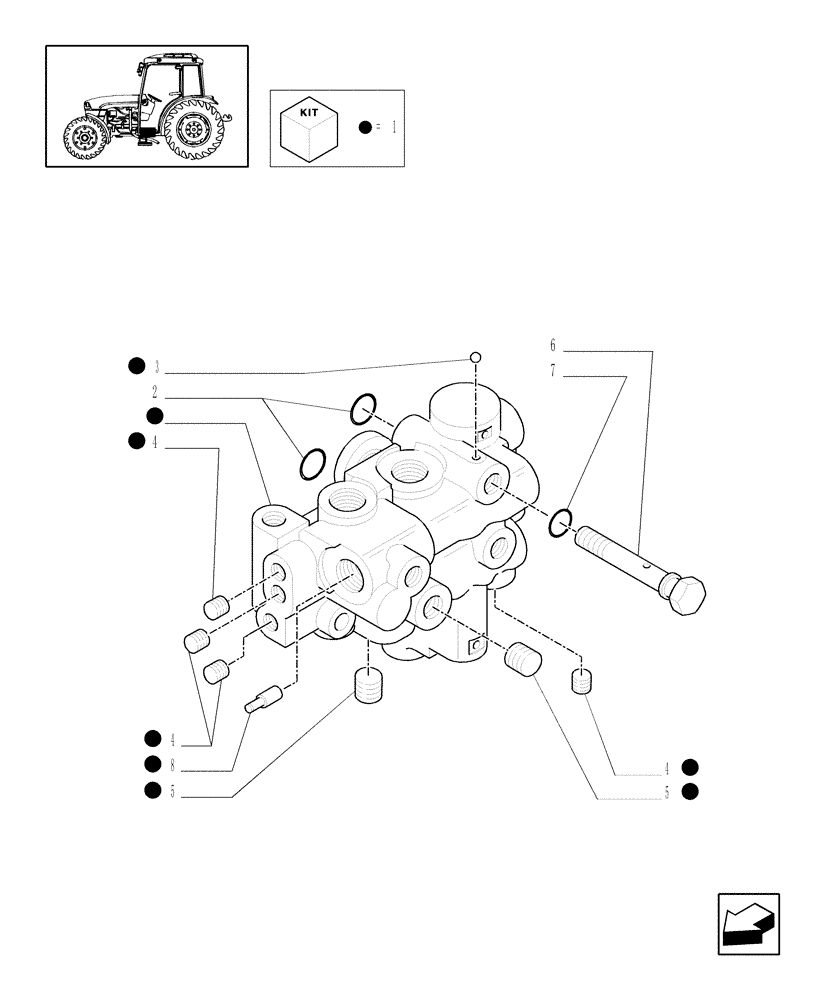

Схема запчастей Case IH JX1085C - (1.33.2/01[02]) - (VAR.826) "BOSCH" HYDRAULIC PUMP X=64L/MIN WITH HEAT EXCHANGER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING
7
8
4
1
3
4
1
6
5
5
4
2
1
1
1
1
1
1
1

Артикул

Название

Примечание

Количество

1

47137763

HYDRAULIC VALVE

ASSY

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

3

20419150

BALL,3.17mm OD, Gr 100, CRS

1/8"

1шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

5

10269504

PLUG,M14 x 1.5

D=14

2шт.

6

5176224

BOLT,Hex, M25 x 1.25 x 107mm L

1шт.

7

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

8

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

Выбрано товаров: 8
