Запчасти Case IH JX1085C (1.33.2/01[01]) - (VAR.826) "BOSCH" HYDRAULIC PUMP X=64L/MIN WITH HEAT EXCHANGER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING

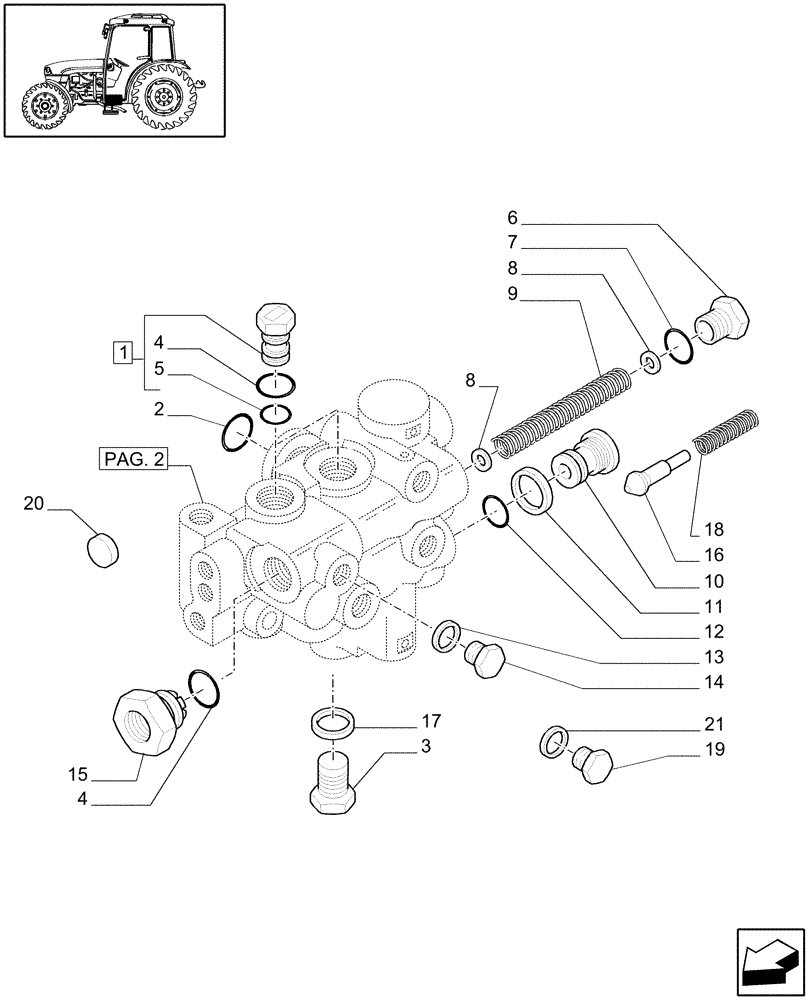

Схема запчастей Case IH JX1085C - (1.33.2/01[01]) - (VAR.826) "BOSCH" HYDRAULIC PUMP X=64L/MIN WITH HEAT EXCHANGER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING
12
13
11
4
6
8
10
2
9
14
1
21
5
19
7
16
pag. 2
4
18
3
8
17
15
20

Артикул

Название

Примечание

Количество

1

5154967

PLUG,Hex R0.2

2шт.

2

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

2шт.

3

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

3шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2WD

2шт.

5

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2WD

1шт.

6

5176204

PLUG,M18 x 1.5

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5x11

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26x1.5

1шт.

12

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

16

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

17

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

3шт.

18

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

20

14328501

PLUG,M16, Tapered

1шт.

21

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

Выбрано товаров: 21
