Запчасти Case IH JX1085C (1.33.1/02[05]) - (VAR.006-307) 4WD ELECTRO-HYDRAULIC COUPLING - SOLENOID VALVE (04) - FRONT AXLE & STEERING

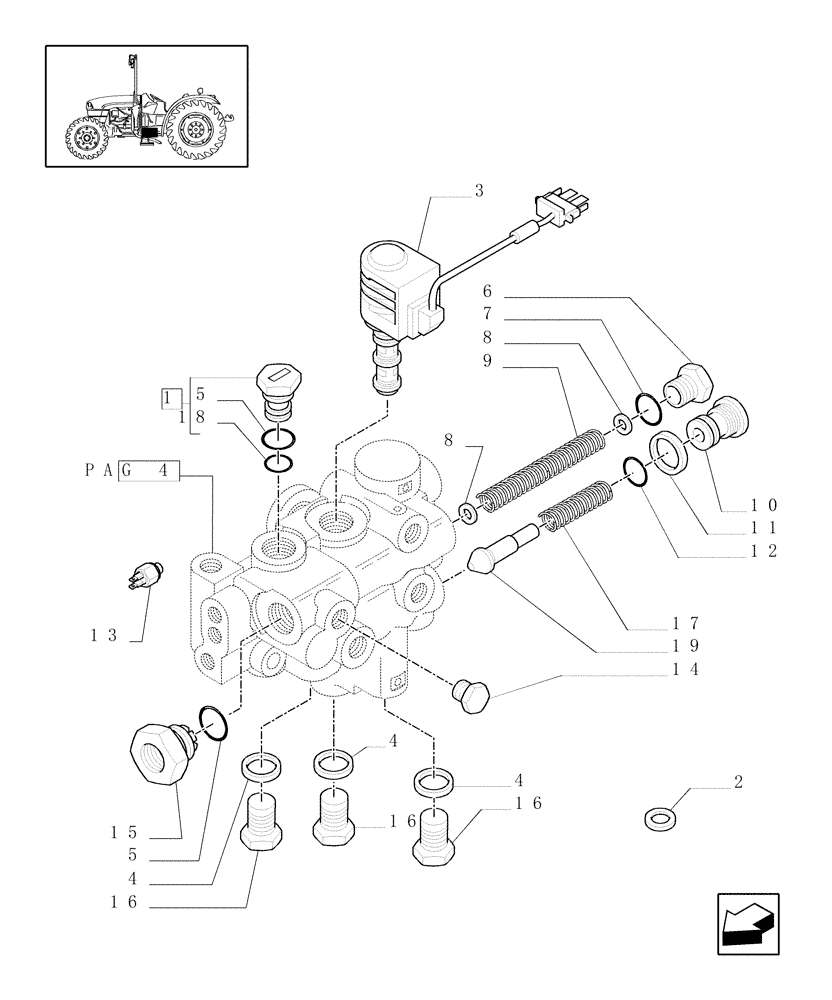

Схема запчастей Case IH JX1085C - (1.33.1/02[05]) - (VAR.006-307) 4WD ELECTRO-HYDRAULIC COUPLING - SOLENOID VALVE (04) - FRONT AXLE & STEERING
17
14
16
4
8
4
6
5
2
16
19
8
5
13
3
16
pag 4
18
9
12
4
1
11
15
10
7

Артикул

Название

Примечание

Количество

1

5154967

PLUG,Hex R0.2

1шт.

2

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

2

13550724

LOCK WASHER

D=5

2шт.

3

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

3шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

6

5176204

PLUG,M18 x 1.5

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

12

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

13

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

Indicates oil missing in DT control pipe

1шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

16

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

3шт.

17

5114402

SPRING,Compression, 11mm OD x 35.5mm L

11x1.4x35.5

1шт.

18

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(M14 ID x 1.78 Thk)

1шт.

19

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

Выбрано товаров: 21
