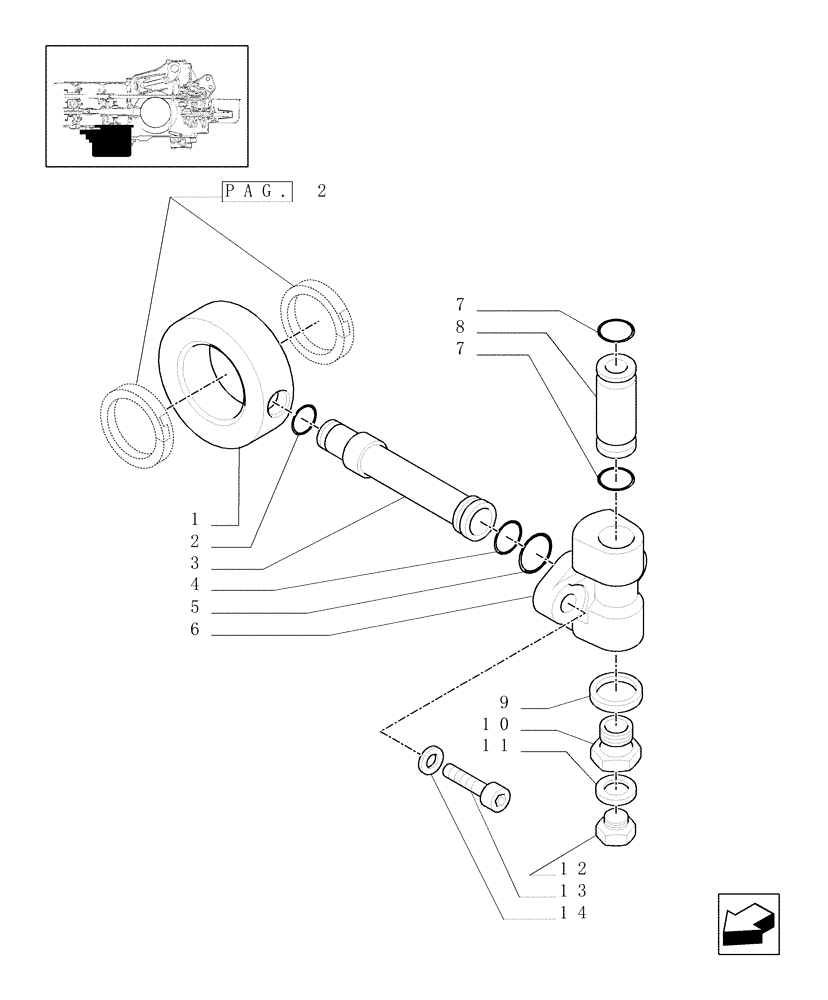

Запчасти Case IH JX1085C (1.33.1/02[03]) - (VAR.006-307) 4WD ELECTRO-HYDRAULIC COUPLING - DELIVERY MANIFOLD PTO (04) - FRONT AXLE & STEERING

1

5197418

MANIFOLD

1шт.

2

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

3

5172910

RIGID TUBE,10.8mm ID x 15.6mm OD x 97mm L

1шт.

4

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

5

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

1шт.

6

5176116

HYD CONNECTOR

1шт.

7

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

8

5173278

PAWL,8mm ID x 16mm OD x 35mm L

1шт.

9

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14x20

1шт.

10

5178010

PLUG

1шт.

11

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

13

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

14

10569279

LOCK WASHER,6.1mm ID x 9.9mm OD x 1.6mm Thk, C72

D=6

2шт.
