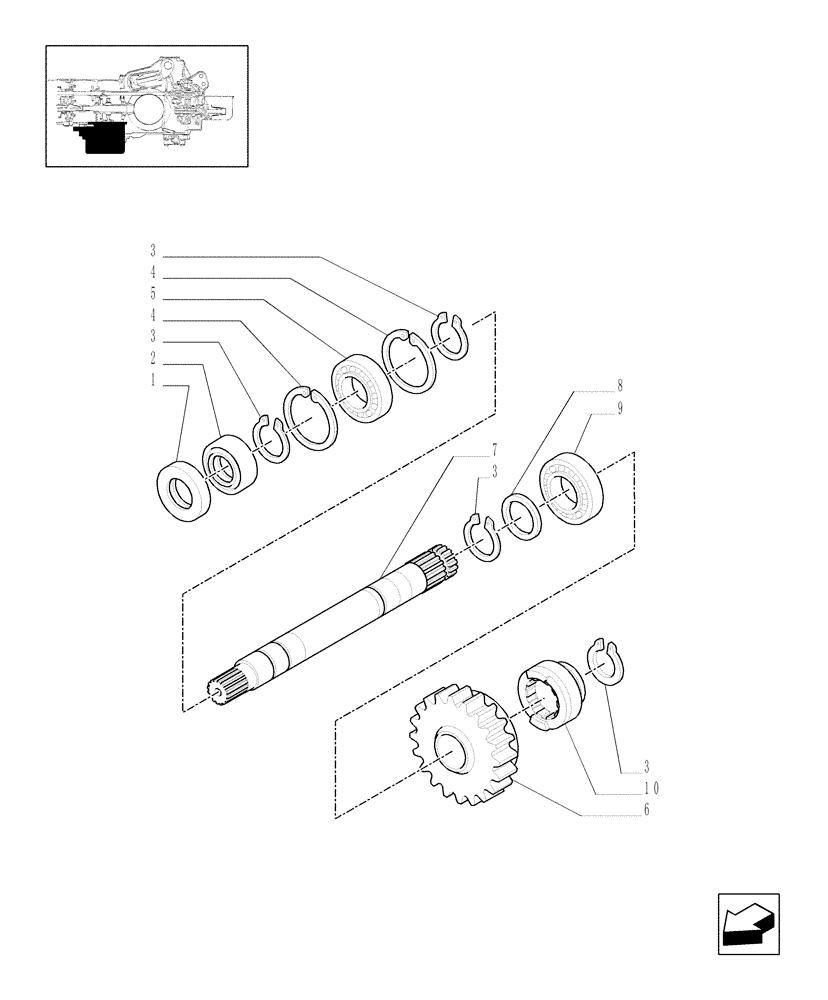

Запчасти Case IH JX1085C (1.33.1) - 4WD TRANSMISSION GEARINGS (04) - FRONT AXLE & STEERING

1

5168315

DISC,35.1mm ID x 62mm OD x 6mm Thk

1шт.

2

5168314

SEAL,35mm ID x 62mm OD x 7mm Thk

35 x 62 x 7

1шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

4шт.

4

80370012

SNAP RING

D=62

2шт.

5

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

1шт.

6

5183155

GEAR

1шт.

7

5172517

SHAFT

1шт.

8

5177817

WASHER,35mm ID x 52mm OD x 3.55mm Thk

2шт.

9

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

10

5177729

SLEEVE

1шт.
