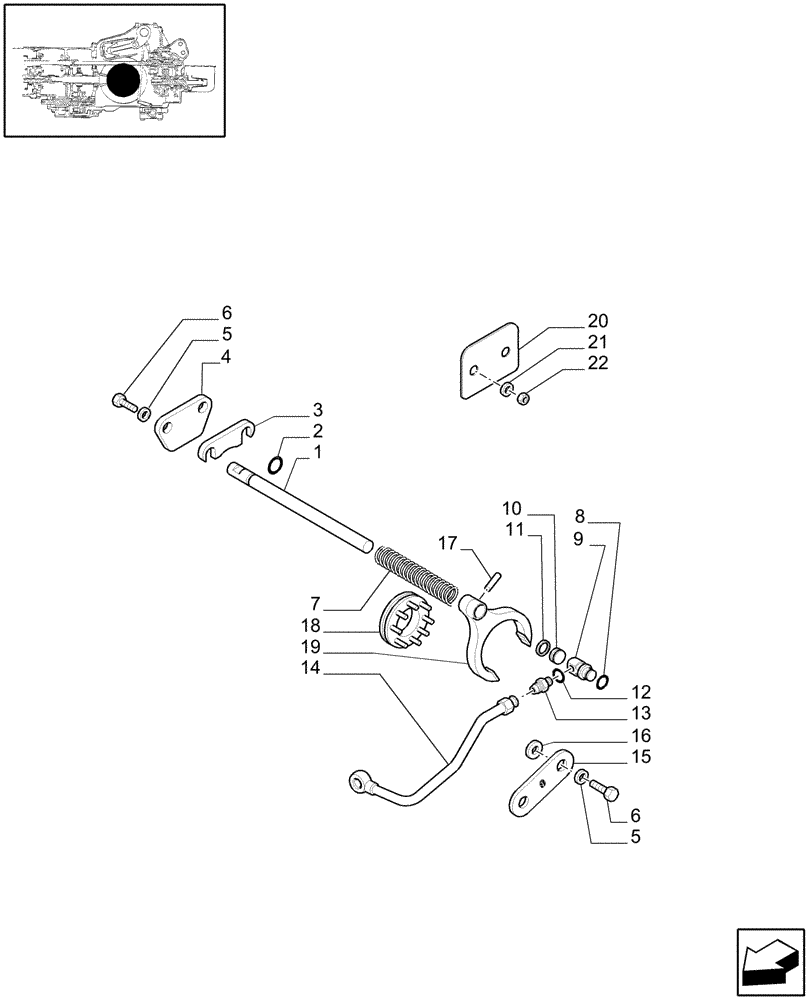

Запчасти Case IH JX1085C (1.32.6/03[01]) - (VAR.326) REAR ELECTROHYDRAULIC DIFF. LOCK (03) - TRANSMISSION

1

5176036

ROD,20mm OD x 295mm L

1шт.

2

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

3

5114582

SHIM,25mm OD x 0.5mm Thk

1шт.

4

5156350

PLATE

1шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

5162818

SPRING,27.5mm OD x 237mm L

1шт.

8

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

9

5162820

ELBOW,M18 x 1.5 x 61mm L

1шт.

10

5162819

PISTON

1шт.

11

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

1шт.

14

5182495

RIGID TUBE

1шт.

15

5168206

PLATE

1шт.

16

5168435

SPACER,10.5mm ID x 25mm OD x 4.5mm L

2шт.

17

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

18

5121654

SLEEVE

1шт.

19

5176032

YOKE,20mm Hole Dia

1шт.

20

5175672

PLUG

1шт.

21

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
