(1.32.6/01[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES

Запчасти Case IH JX1085C (1.32.6/01[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION

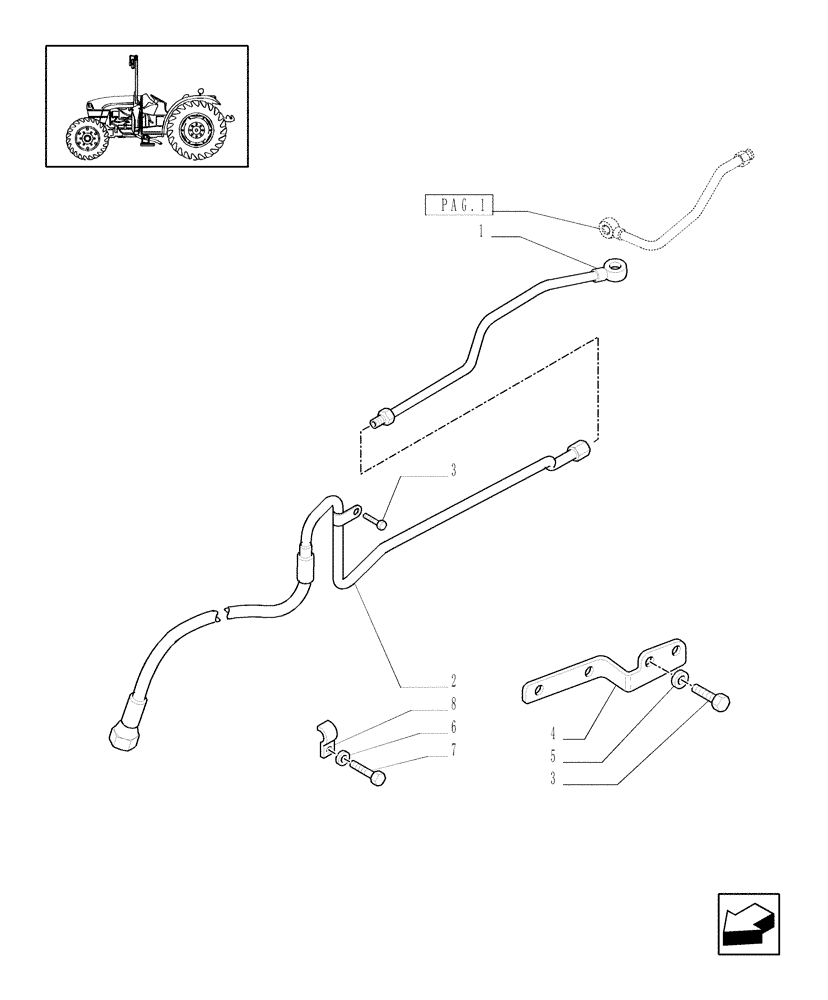

Схема запчастей Case IH JX1085C - (1.32.6/01[02]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION
p
a
3
8
5
g.1
2
6
3
7
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5176162

RIGID TUBE

1шт.

2

87309320

RIGID TUBE

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

5180410

BRACKET

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

8

44903268

RETAINER COLLAR,12mm ID

1шт.

Выбрано товаров: 8
