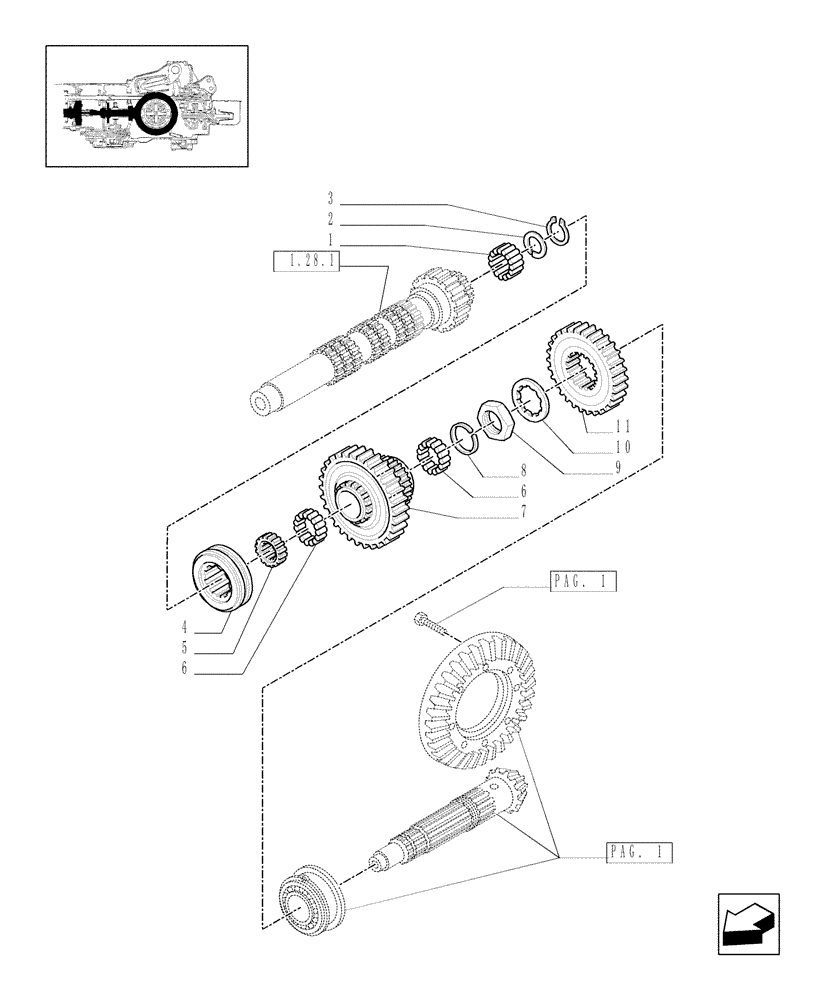

Запчасти Case IH JX1085C (1.32.1[02]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

5168207

ROLLER BEARING,25mm ID x 35mm OD x 30mm W

25x35x30

1шт.

2

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

D=35

1шт.

3

80370003

CIRCLIP

M30

1шт.

4

5175992

SLEEVE,59mm ID x 89.5mm OD x 24mm L

Outer

1шт.

5

5175990

DRIVE BUSHING

Inner

1шт.

6

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35x40x27

2шт.

7

5187940

GEAR

Med/Low

1шт.

8

5168197

SNAP RING,1.5mm Thk, Int

1шт.

9

5171819

NUT,M38x1

1шт.

10

5168182

LOCK WASHER,36mm ID x 68mm OD x 1.5mm Tnk

1шт.

11

87384791

GEAR,43T

Med/High

1шт.
