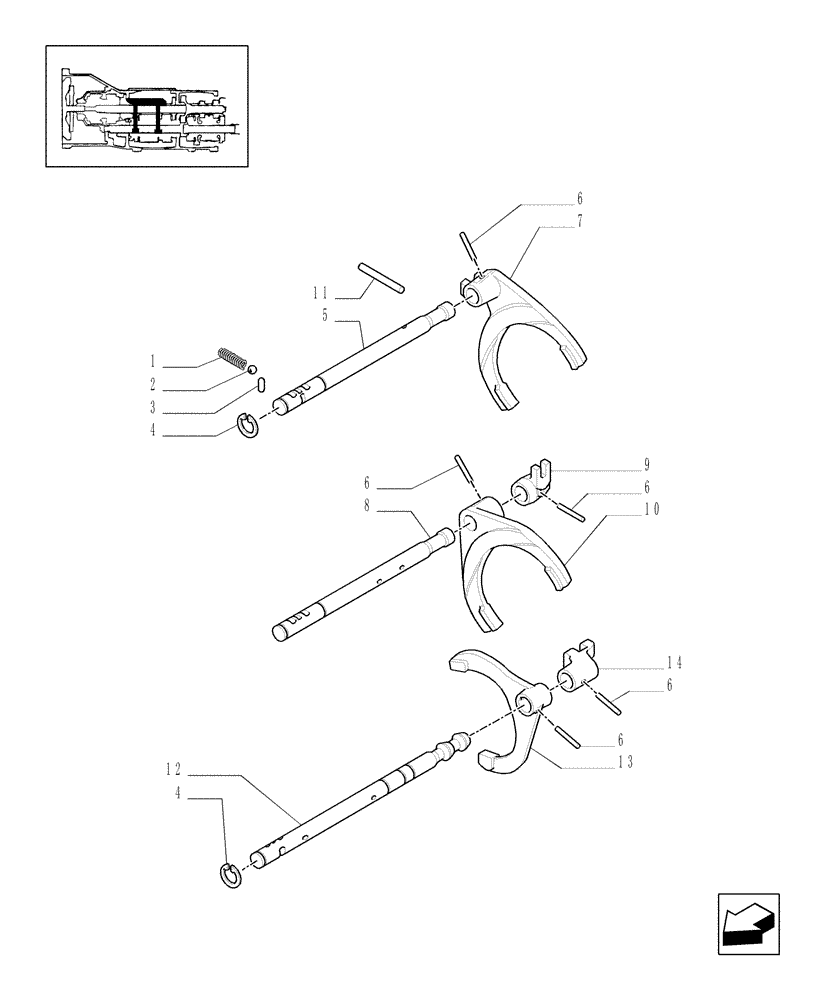

Запчасти Case IH JX1085C (1.29.0) - TRANSMISSION INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

5168268

SPRING,Compression, 8mm OD x 42mm L

3шт.

2

20063390

BALL,8.73mm OD

D = 11/32"

3шт.

3

5149882

PAWL,8.5mm D x 23mm L

1шт.

4

300625

SNAP RING,M16, Ext

3шт.

5

5177302

ROD,15.5mm OD x 299mm L

1ST/2ND Gear

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

5шт.

7

5171985

SHIFTER FORK,96mm OD x 8mm Thk

1ST/2ND Gear

1шт.

8

5177303

ROD,15.5mm OD x 299mm L

3RD/4TH Gear

1шт.

9

5172005

DOG

3RD/4TH Gear

1шт.

10

5171991

SHIFTER FORK,96mm OD x 8mm Thk

3RD/4TH Gear

1шт.

11

10337110

DOWEL,M6 x 45

6x45

1шт.

12

47130818

ROD,15.5mm OD x 391mm L

Rev

1шт.

13

47125919

YOKE,16mm Hole Dia

Rev

1шт.

14

5178133

DOG

Rev

1шт.

14

5178071

DOG

Rev, VAR.007

1шт.
