Запчасти Case IH JX1085C (1.28.8/06) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30 KM/H) W. HEAT EXCH. AND ADJ. COLUMN-OIL FILTER, COUPLINGS (03) - TRANSMISSION

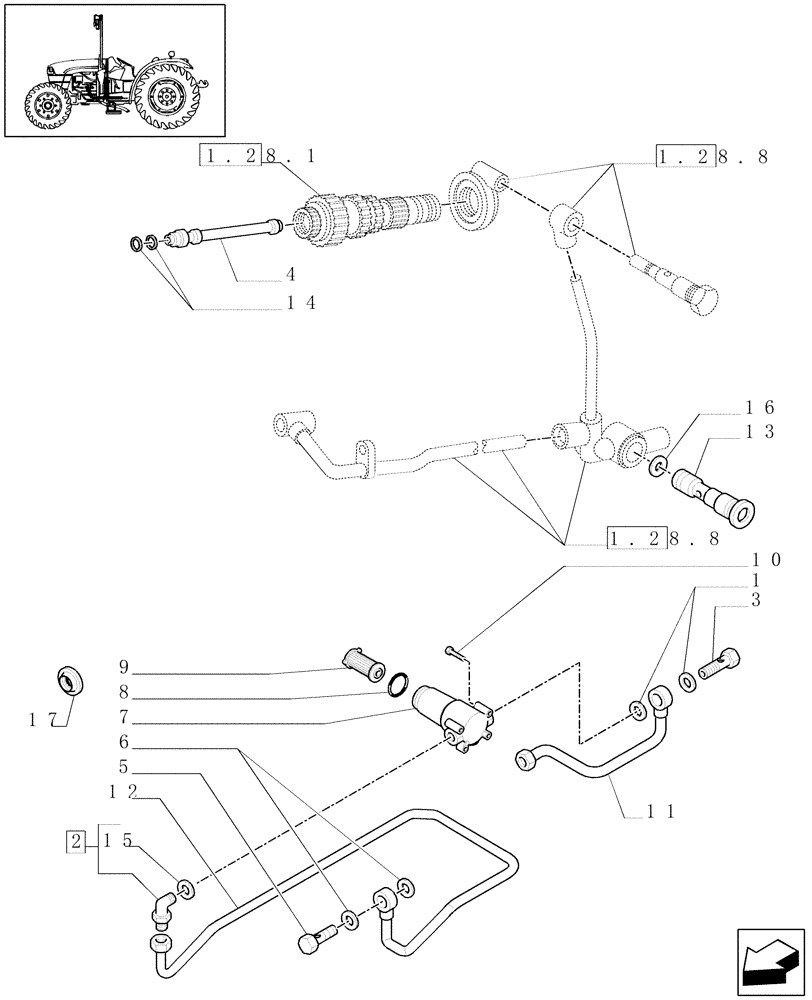

Схема запчастей Case IH JX1085C - (1.28.8/06) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30 KM/H) W. HEAT EXCH. AND ADJ. COLUMN-OIL FILTER, COUPLINGS (03) - TRANSMISSION
8
9
1.28.8
2
5
10
12
7
11
16
13
15
1.28.8
3
4
6
17
1.28.1
1
14

Артикул

Название

Примечание

Количество

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

3

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

4

5173963

RIGID TUBE

1шт.

5

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

3шт.

7

84256436

HYDRAULIC OIL FILTER

Incl. 8, 9

1шт.

8

5194880

O-RING KIT

1шт.

9

5194879

ELEMENT

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

11

5193553

RIGID TUBE

Front

1шт.

12

5193388

RIGID TUBE

Rear

1шт.

13

5177777

BANJO BOLT,M11 x 54mm

1шт.

14

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2шт.

16

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

17

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5x30x1.5

2шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

Выбрано товаров: 18
