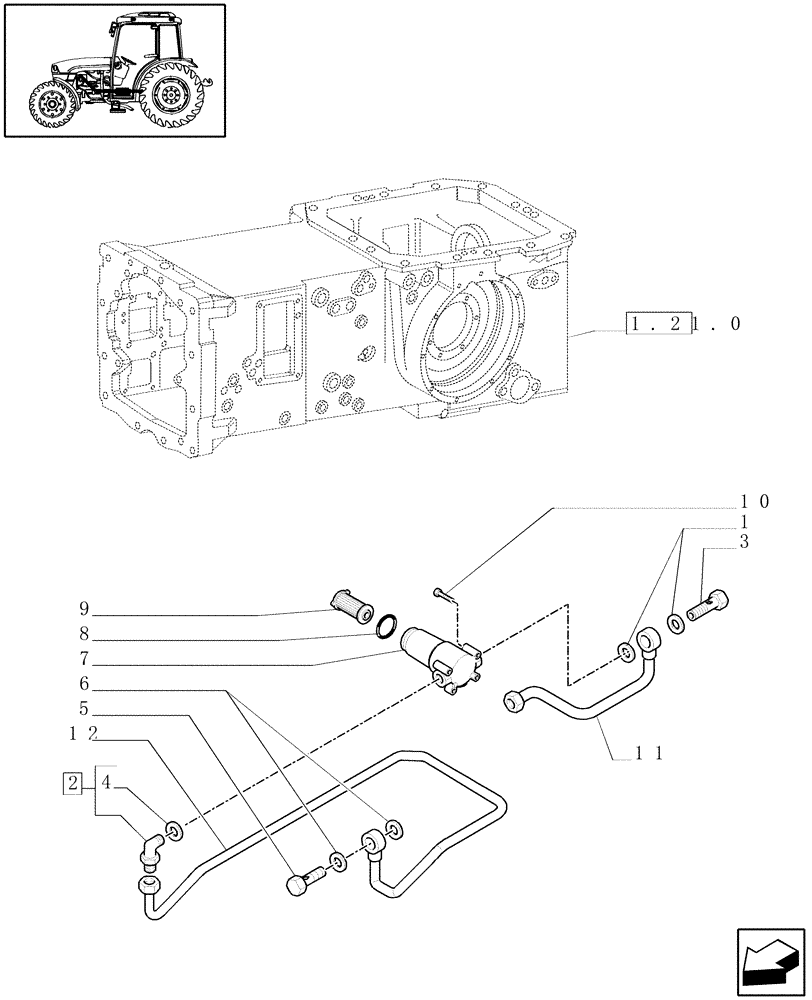

Запчасти Case IH JX1085C (1.28.8/01) - (VAR.126) ELECTRONIC LIFT - GEAR LUBRICATION SYSTEM, PIPES AND OIL FILTER (03) - TRANSMISSION

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

3

5182095

BANJO BOLT,M22 x 1.5 x 47mm

, Serial Range: -C5723

1шт.

3

44909408

BANJO BOLT

, Start Serial: D5723

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5184345

BANJO BOLT,M18 x 1.5 x 34mm

, Serial Range: -C5723

1шт.

5

5188580

BANJO BOLT,Hex, M12/18 x 1.5

, Start Serial: D5723

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

3шт.

7

84256436

HYDRAULIC OIL FILTER

Incl. 8, 9, Serial Range: -C5723

1шт.

8

5194880

O-RING KIT

, Serial Range: -C5723

1шт.

9

5194879

ELEMENT

, Serial Range: -C5723

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C5723

2шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

, Serial Range: -C5723

2шт.

11

5193553

RIGID TUBE

Front

1шт.

12

5193388

RIGID TUBE

Rear

1шт.
