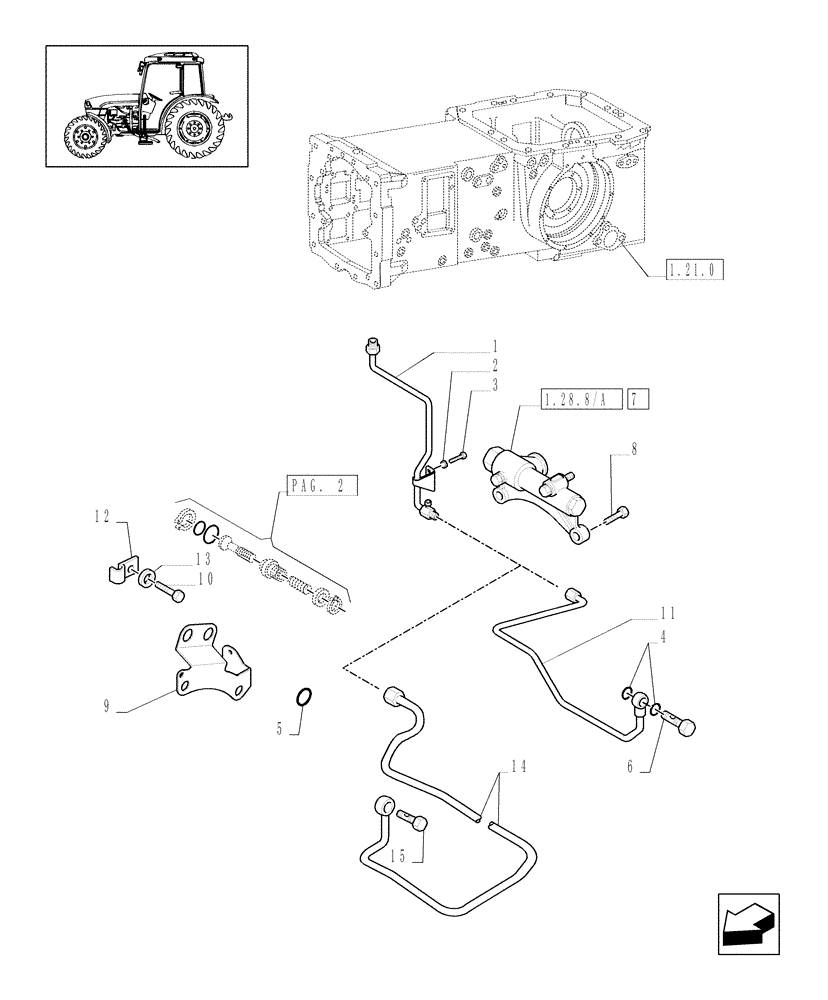

Запчасти Case IH JX1085C (1.28.8[01]) - GEAR LUBRICATION SYSTEM - C5723 (03) - TRANSMISSION

1

87306393

RIGID TUBE,16 mm OD

Front

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

5

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

1шт.

6

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M18x34

1шт.

7

5186117

HYDRAULIC VALVE

ASSY

1шт.

8

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

87303298

BRACKET

1шт.

10

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

11

5186423

RIGID TUBE

2WD, Rear

1шт.

12

5178447

BRACKET

1шт.

13

10516474

LOCK WASHER

D=6

1шт.

14

5188548

RIGID TUBE

4WD, Rear

1шт.

15

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.
