(1.28.7/05[05]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P.SHUTTLE, W/OIL COOLER - DRIVEN GEAR

Запчасти Case IH JX1085C (1.28.7/05[05]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P.SHUTTLE, W/OIL COOLER - DRIVEN GEAR (03) - TRANSMISSION

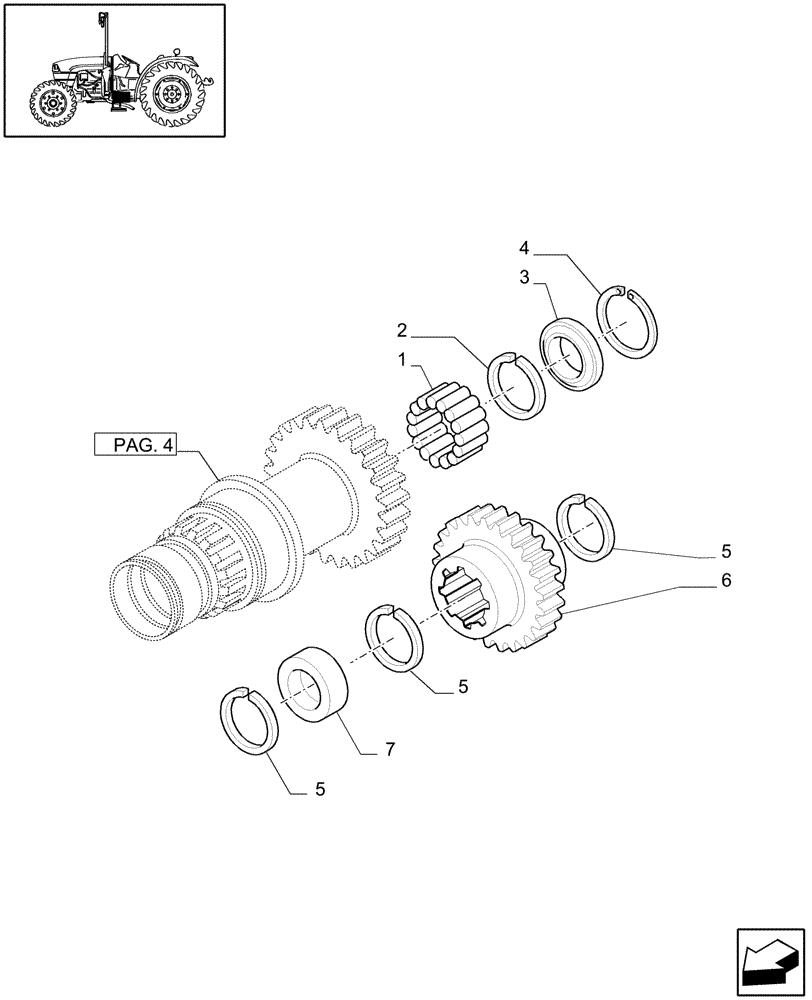

Схема запчастей Case IH JX1085C - (1.28.7/05[05]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P.SHUTTLE, W/OIL COOLER - DRIVEN GEAR (03) - TRANSMISSION
5
5
2
6
5
1
pag. 4
4
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

2

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

1шт.

3

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

1шт.

4

5117076

CIRCLIP,M47, Ext

1шт.

5

5168188

SNAP RING,1.5mm Thk, Ext

3шт.

6

5173718

GEAR,36T

1шт.

7

5183697

SPACER,49.7mm ID x 61.5mm OD x 17.4mm L

1шт.
