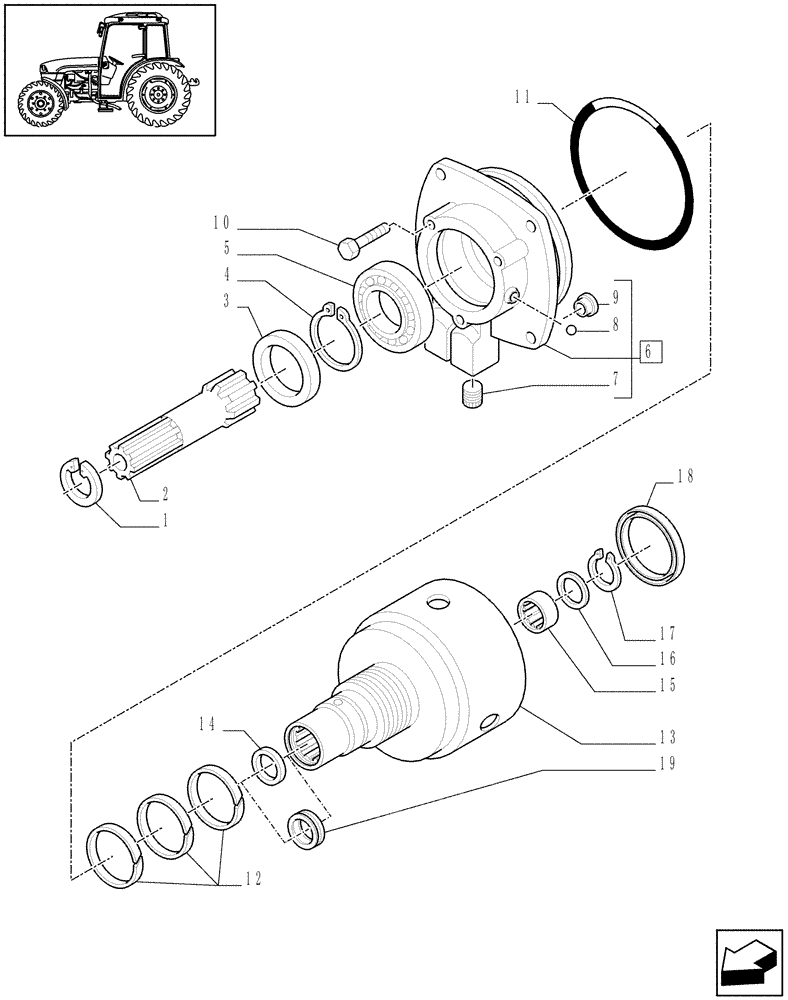

Запчасти Case IH JX1085C (1.28.7/05[01]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P.SHUTTLE, W/OIL COOLER - CLUTCH COVER PLATE (03) - TRANSMISSION

1

13421976

SNAP RING,M45, Int

1шт.

2

5177498

SHAFT

, Serial Range: -HJH082858

1шт.

2

87558416

SHAFT,191mm

, Start Serial: HJH082859

1шт.

3

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

50x70x8

1шт.

4

11069576

SNAP RING,M55, Ext

1шт.

5

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

50x90x18

1шт.

6

5177559

COVER

1шт.

7

10269404

PLUG,M12 x 1.5

M12 x 1.5

6шт.

8

20063430

BALL,4.76mm OD, Gr 100

D=3/16"

1шт.

9

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

14462181

O-RING,152.1mm ID x 2.62mm Width

1шт.

12

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

3шт.

13

5177464

BELL HOUSING

, Serial Range: -HJH082858

1шт.

13

87558414

BELL HOUSING

, Start Serial: HJH082859

1шт.

14

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7, Serial Range: -HJH082858

1шт.

15

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

25x32x16

1шт.

16

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

25x32x16

1шт.

17

5180152

CIRCLIP,27.8mm ID

D=32

1шт.

18

5168345

SEAL,67.55mm ID x 75mm OD x 3.2mm Thk

67.55 x 75 x 3.2

1шт.

19

87528273

OIL SEAL,25mm ID x 40mm OD x 7mm Thk

25 x 40 x 7, Start Serial: HJH082859

1шт.
