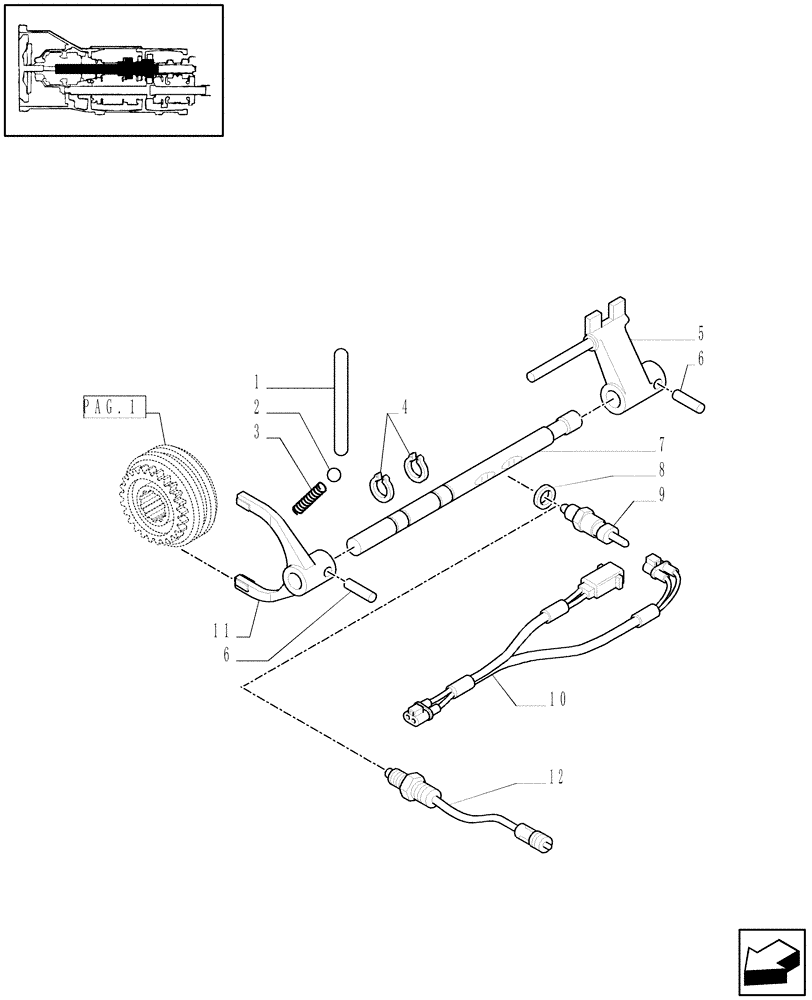

Запчасти Case IH JX1085C (1.28.1/11[02]) - (VAR.118) 32X16 (30KM/H) TRANSM. W/MECHANICAL SPLITTER - FORK, ROD AND PAWL. (03) - TRANSMISSION

1

5173942

PAWL,8.5mm OD x 95.5mm L

1шт.

2

20063390

BALL,8.73mm OD

1шт.

3

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

4

13397776

SNAP RING,M16, Int

2шт.

5

5178232

DOG

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

7

47130804

ROD,15.5mm OD x 352mm L

1шт.

8

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

1шт.

9

47132956

SENSOR

Neutral, Gearbox and Reverser, Serial Range: -C5602

1шт.

10

5189719

ELECTRIC CABLE

1шт.

11

5173949

YOKE,16mm Hole Dia

Splitter

1шт.

12

87598056

SWITCH

Yellow, Start Serial: D5602

1шт.
