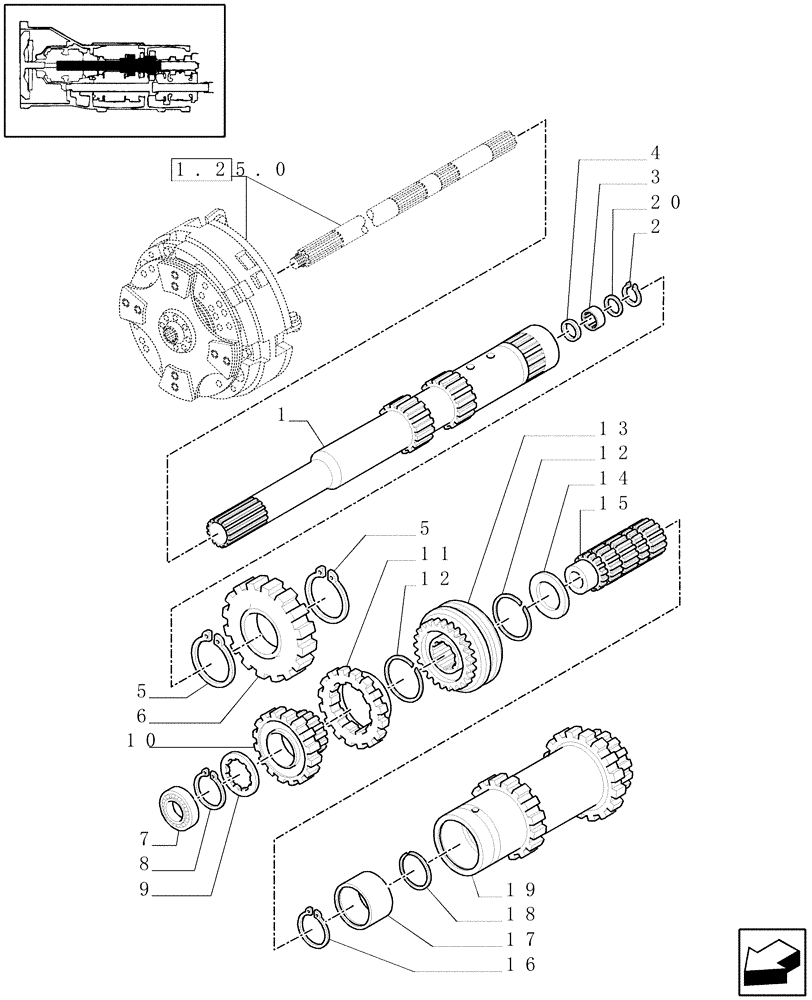

Запчасти Case IH JX1085C (1.28.1/11[01]) - (VAR.118) 32X16 (30KM/H) TRANSM. W/MECHANICAL SPLITTER - CLUTCH SHAFT, GEARS AND SYNCH. (03) - TRANSMISSION

1

5177461

CONTROL SHAFT

1шт.

2

5180152

CIRCLIP,27.8mm ID

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25x31x7

1шт.

5

5173975

CIRCLIP,50.8mm ID x 3mm Thk

D=55

2шт.

6

5173945

GEAR,40T

Splitter

1шт.

7

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

8

5123651

SNAP RING,36mm, External

D=40

1шт.

9

5177039

THRUST WASHER,52mm OD x 2.5mm Thk, 12T

1шт.

10

5177566

DRIVEN GEAR,36T

Splitter

1шт.

11

5183337

SYNCHRONIZER

1шт.

12

5168195

SNAP RING,1.5mm Thk, Ext

2шт.

13

5197957

SYNCHRONIZER

1шт.

14

5173403

SPACER

1шт.

15

5177564

DRIVEN SHAFT,86.5mm

Splitter

1шт.

16

5173957

THRUST WASHER,39mm OD x 1.5mm Thk

1шт.

17

5173915

SPACER,50mm ID x 58mm OD x 34mm L

1шт.

18

5168188

SNAP RING,1.5mm Thk, Ext

1шт.

19

5177574

GEAR,33T / 24T

Rev/4TH

1шт.

20

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.
