(1.28.1/04[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ.COLUMN - CLUTCH SHAFT

Запчасти Case IH JX1085C (1.28.1/04[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ.COLUMN - CLUTCH SHAFT (03) - TRANSMISSION

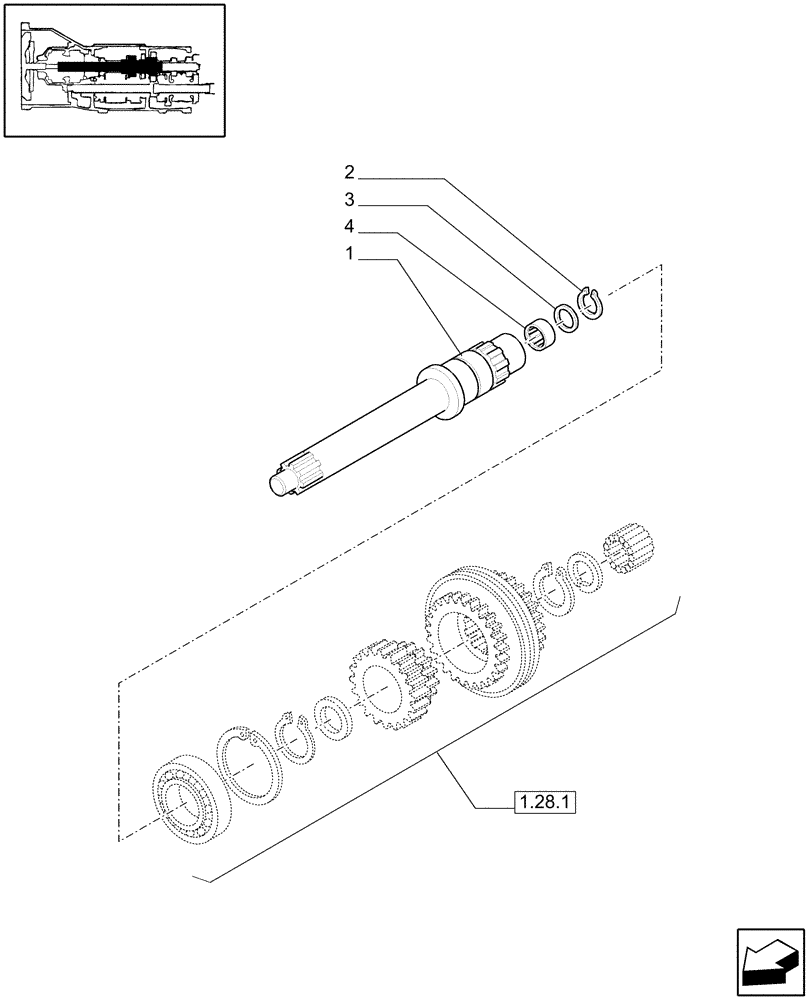

Схема запчастей Case IH JX1085C - (1.28.1/04[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ.COLUMN - CLUTCH SHAFT (03) - TRANSMISSION
1
4
1.28.1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177472

MAIN SHAFT,344mm

1шт.

2

5180152

CIRCLIP,27.8mm ID

D=32

1шт.

3

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

25x32x16

1шт.

4

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

25x32x16

1шт.
