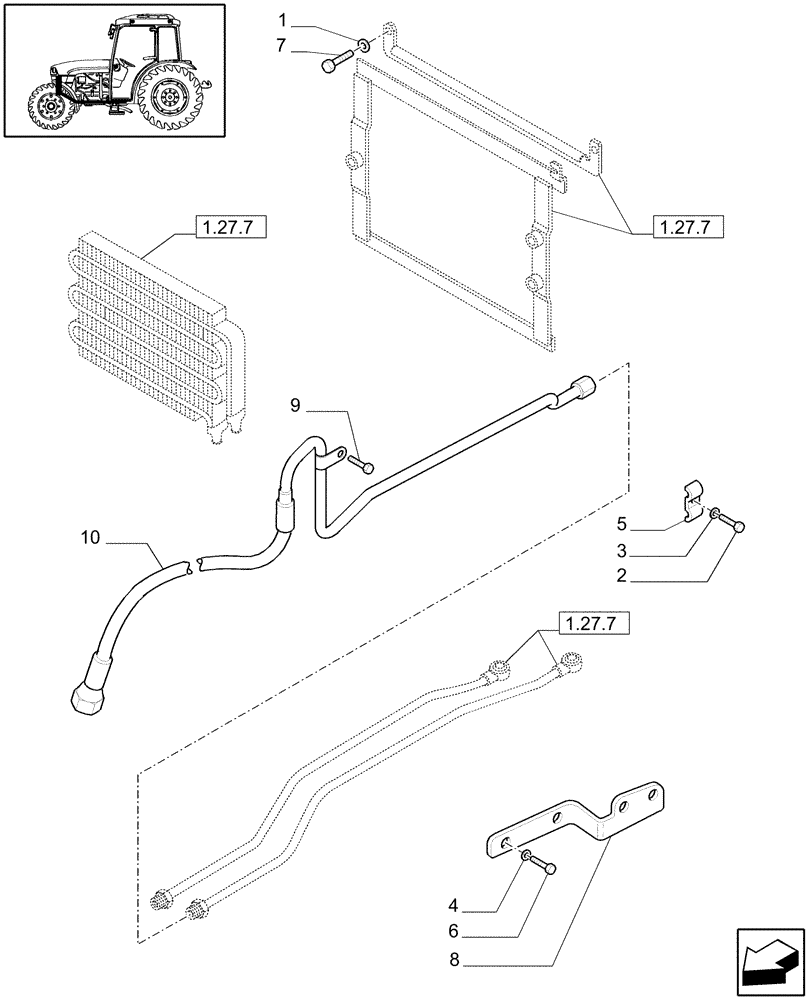

Запчасти Case IH JX1085C (1.27.7/08) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - PIPES (03) - TRANSMISSION

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8 x 16

2шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

3

10516474

LOCK WASHER

D=6

2шт.

4

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

D=16

1шт.

5

44903268

RETAINER COLLAR,12mm ID

1шт.

6

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

8

5180410

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

10

87309320

RIGID TUBE

1шт.
