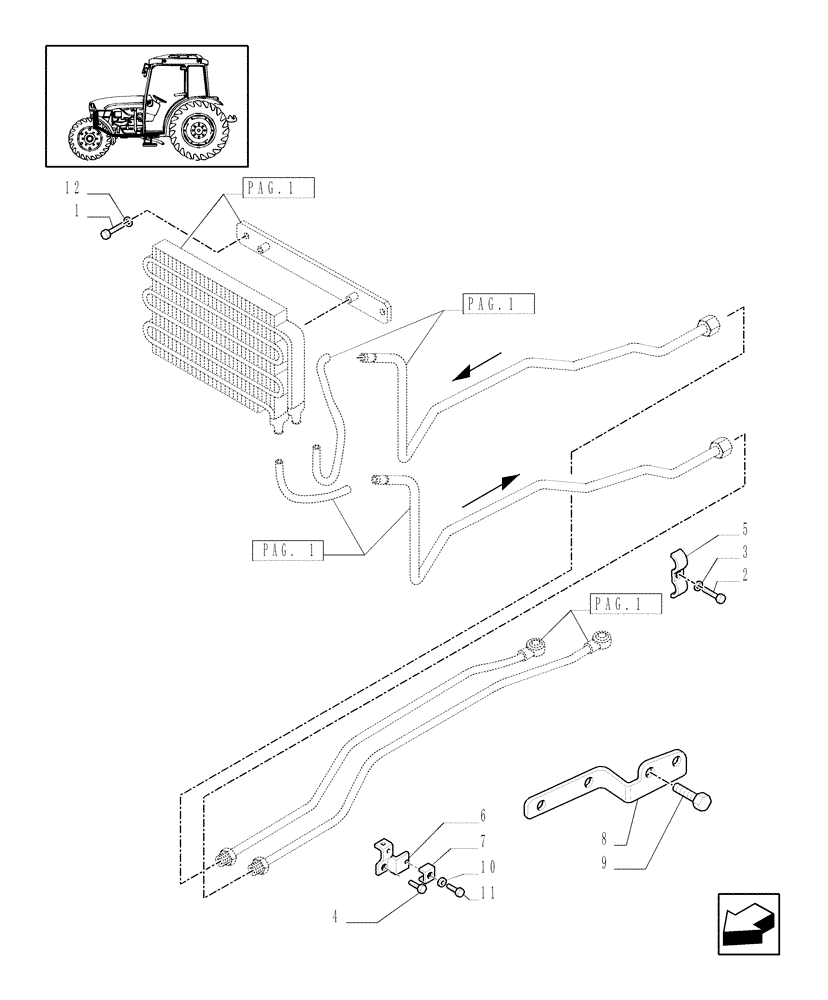

Запчасти Case IH JX1085C (1.27.7/05[02]) - (VAR.065/1-826) HYDRAULIC PUMP X=64L/MIN WITH HEAT EXCHANGER - BRACKETS (03) - TRANSMISSION

1

16171611

SCREW,M6 x 30mm

M6x30

2шт.

2

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

5

5177880

CLAMP,14mm ID

1шт.

6

47132747

BRACKET

1шт.

7

5170599

BRACKET

1шт.

8

5180410

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

10

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

1шт.

11

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

12

12624904

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.
