(1.27.7/04[01]) - (VAR.275-275/1) 32X16 (30KM/H) T. W/HI-LO & P.SHUTTLE, W/OIL COOLER - FRAME, RADIATOR AND PIPES

Запчасти Case IH JX1085C (1.27.7/04[01]) - (VAR.275-275/1) 32X16 (30KM/H) T. W/HI-LO & P.SHUTTLE, W/OIL COOLER - FRAME, RADIATOR AND PIPES (03) - TRANSMISSION

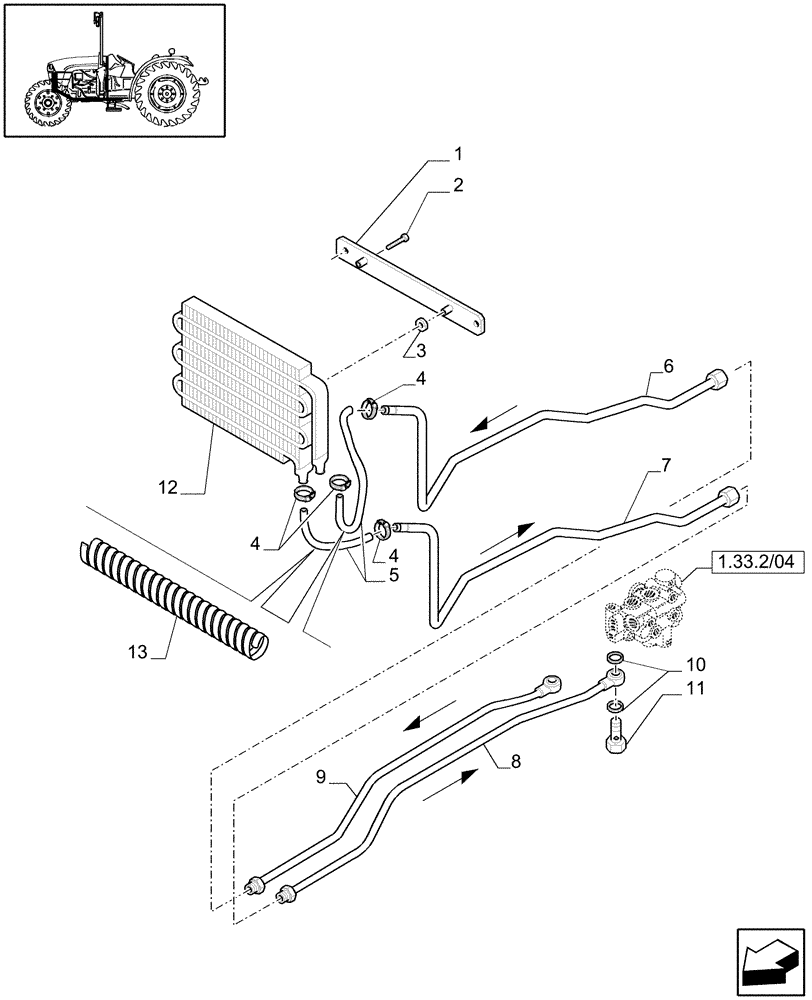

Схема запчастей Case IH JX1085C - (1.27.7/04[01]) - (VAR.275-275/1) 32X16 (30KM/H) T. W/HI-LO & P.SHUTTLE, W/OIL COOLER - FRAME, RADIATOR AND PIPES (03) - TRANSMISSION
8
5
10
3
7
12
6
1
13
1.33.2/04
11
9
2
4
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198203

BRACKET

1шт.

2

14781514

SCREW,M8 x 12mm, Cl 5.8

M8x12

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

VAR.275

2шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

1500mm Before Date 21 February 2006;600mm W/VAR.275, 1200mm W/VAR.275/1 After Date 21 February 2006

1шт.

6

87309468

RIGID TUBE

Delivery

1шт.

7

87309470

RIGID TUBE

Return

1шт.

8

5177868

RIGID TUBE

Return, VAR.275

1шт.

9

5177864

RIGID TUBE

Delivery, VAR.275

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24, VAR.275

4шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34, VAR.275

2шт.

12

83945933

OIL COOLER

VAR.275

1шт.

13

5186848

FLEXIBLE HOSE

350MM, Serial Range: -HJE083488

2шт.

13

47131913

HOSE PROTECTION

400MM, VAR.275/1, Start Serial: HJE083489

2шт.
