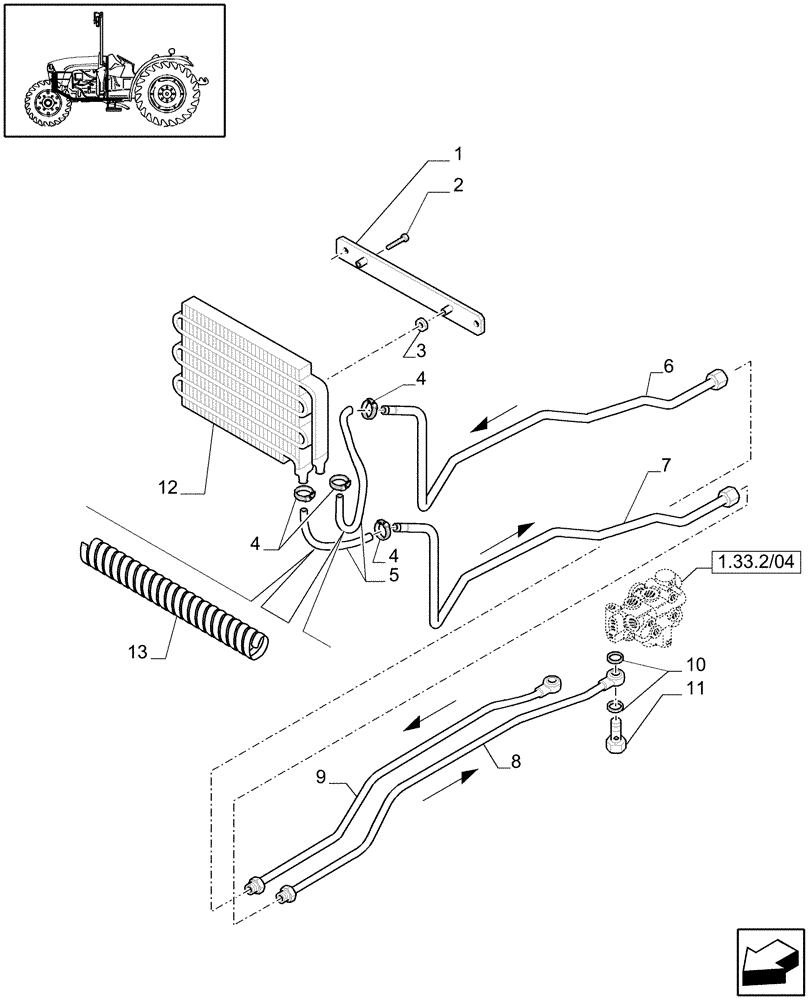

Запчасти Case IH JX1085C (1.27.7[01]) - (VAR.278-278/1-296) NA - 16X16 (30 KM/H) P.SHUTT. W/OIL COOLER - RADIATOR AND PIPES (03) - TRANSMISSION

1

5198203

BRACKET

VAR.278-278/1

1шт.

2

14781514

SCREW,M8 x 12mm, Cl 5.8

M8x12, VAR.278-278/1

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

VAR. 278-278/1

2шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

1500mm Before Date 21 February 2006; 600mm W/VAR. 278-278/1, 1200mm W/VAR.296 After Date 21 February 2006

1шт.

6

87309468

RIGID TUBE

Delivery

1шт.

7

87309470

RIGID TUBE

Return

1шт.

8

5177868

RIGID TUBE

Return

1шт.

9

5177864

RIGID TUBE

Delivery

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

4шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

2шт.

12

83945933

OIL COOLER

VAR.278-278/1 (Replaces E1NN7A095AA)

1шт.

13

5186848

FLEXIBLE HOSE

350MM, Serial Range: -HJH083488

2шт.

13

47131913

HOSE PROTECTION

400MM, VAR.296, Start Serial: HJH083489

2шт.
