Запчасти Case IH JX1085C (1.27.3/05[02]) - (VAR.275-275/1) 32X16 (30KM/H) TR. W/HI-LO & P. SHUTTLE, W/OIL COOLER - COVER AND CAPS (03) - TRANSMISSION

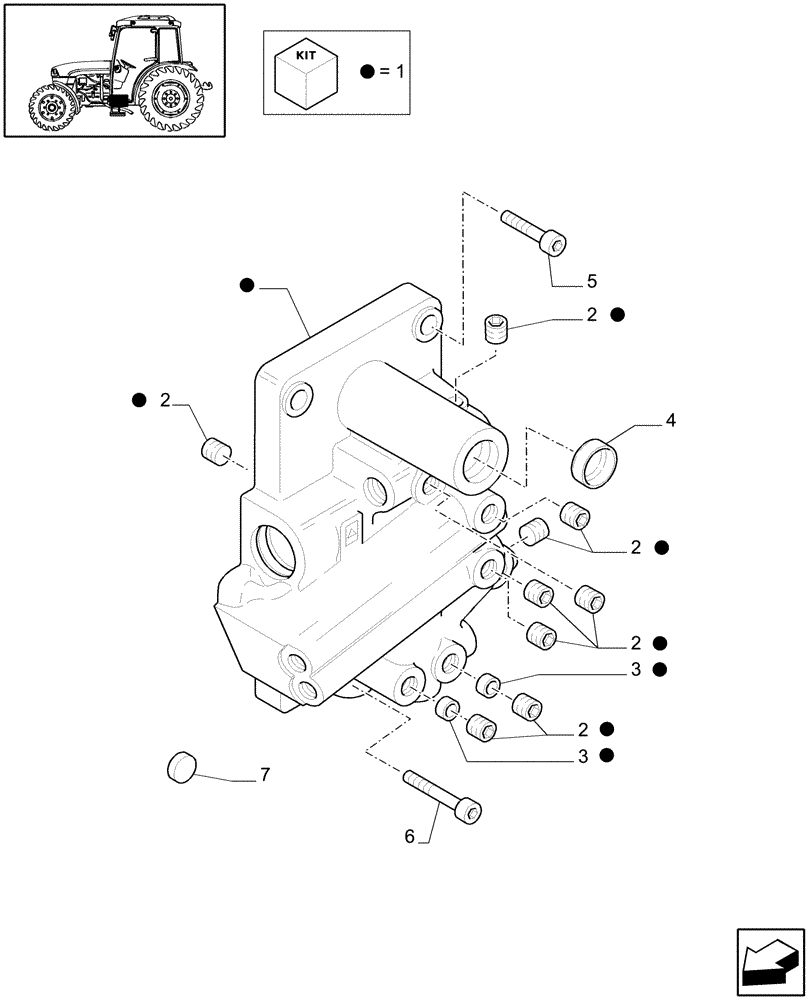

Схема запчастей Case IH JX1085C - (1.27.3/05[02]) - (VAR.275-275/1) 32X16 (30KM/H) TR. W/HI-LO & P. SHUTTLE, W/OIL COOLER - COVER AND CAPS (03) - TRANSMISSION
1
1
4
2
2
3
1
7
1
5
1
1
1
3
2
2
1
2
6
1

Артикул

Название

Примечание

Количество

1

47126468

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

3

5173959

HYD CONNECTOR

2шт.

4

14329801

PLUG,M32, Tapered

1шт.

5

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

7

14328501

PLUG,M16, Tapered

2WD

1шт.

Выбрано товаров: 7
