(1.27.3/04[03]) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30 KM/H) W. HEAT EXCHANGER AND ADJ. COLUMN-ACCUMUL. AND PIPES

Запчасти Case IH JX1085C (1.27.3/04[03]) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30 KM/H) W. HEAT EXCHANGER AND ADJ. COLUMN-ACCUMUL. AND PIPES (03) - TRANSMISSION

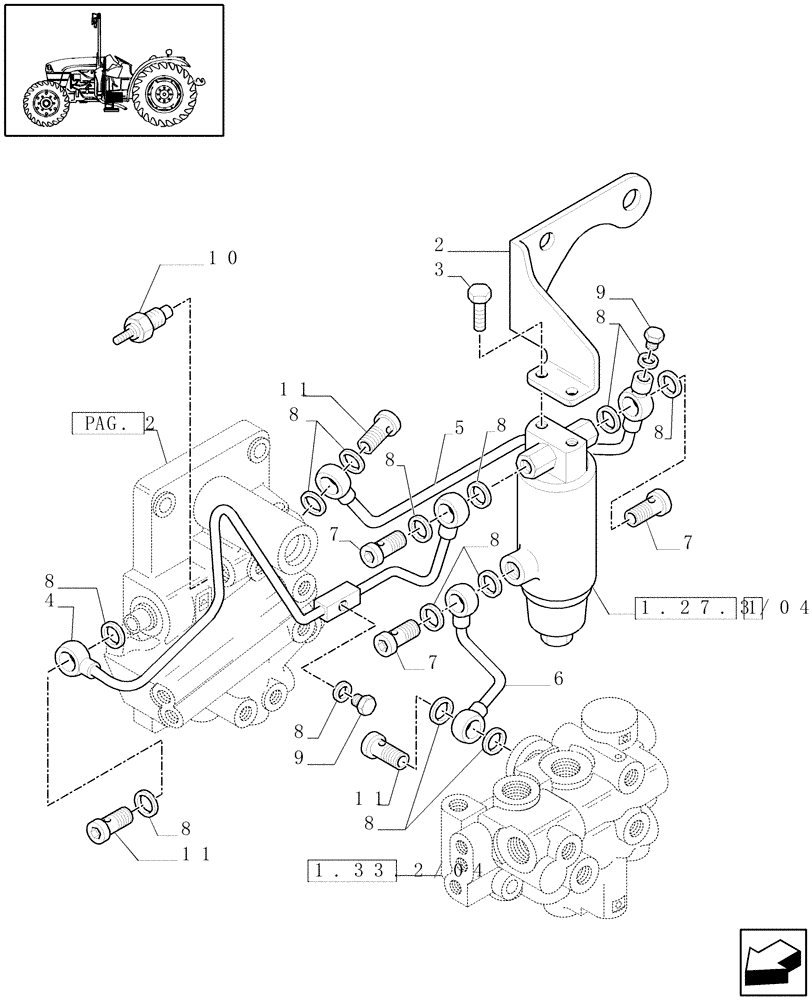

Схема запчастей Case IH JX1085C - (1.27.3/04[03]) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30 KM/H) W. HEAT EXCHANGER AND ADJ. COLUMN-ACCUMUL. AND PIPES (03) - TRANSMISSION
4
9
g
5
p
8
8
1.33.2/04
9
11
a
8
2
7
8
8
1
.
7
8
6
2
8
11
3
8
7
10
8
1.27.3/04a
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174487

ACCUMULATOR

, Serial Range: -C5583

1шт.

1

87622906

ACCUMULATOR

, Start Serial: D5583

1шт.

2

5187886

BRACKET

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

5193220

RIGID TUBE

1шт.

5

5191298

RIGID TUBE

1шт.

6

5191273

RIGID TUBE

1шт.

7

5181983

HYD CONNECTOR,M10 x 1 27mm L

M10x1x21

2шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

2WD

2шт.

10

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

11

5176180

BANJO BOLT,M10 x 1 x 17.5mm

4шт.
