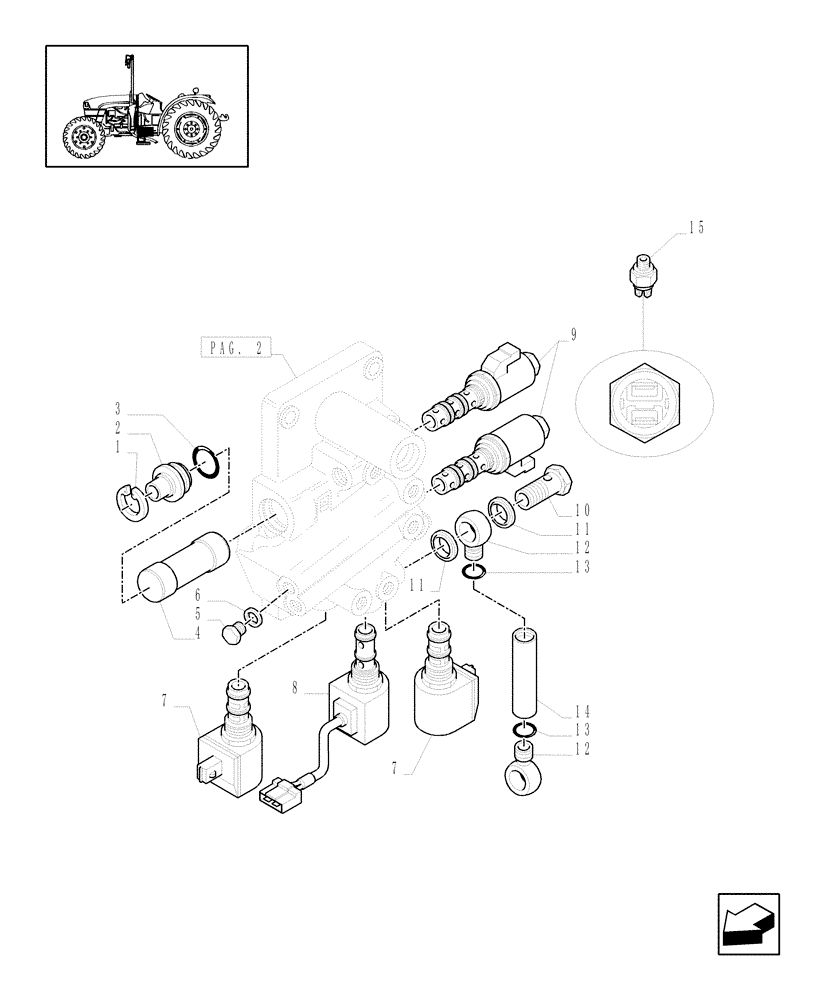

Запчасти Case IH JX1085C (1.27.3/04[01]) - (VAR.270) DUAL COMMAND (2 SPS) 32X16 (30KM/H) WITH HEAT EXCHANGER AND ADJ. COLUMN - SOL. VALVES (03) - TRANSMISSION

1

11058876

SNAP RING,M30, Int

D=30

1шт.

2

5176167

PLUG,M10 x 1

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

47126471

PISTON

1шт.

5

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

6

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

7

5168052

SOLENOID VALVE

Solenoid W/O Diode

2шт.

8

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

9

5168054

SOLENOID VALVE

Solenoid, Proportional Pressure

2шт.

10

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M18x34

1шт.

Q.ty 3 for 2WD, Q.ty 6 for 4WD

1шт.

11

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

1шт.

Q.ty 8 for 2WD, Q.ty 10 for 4WD

1шт.

12

5173682

BANJO BOLT,M9 x 30mm

2шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

14

5173681

RIGID TUBE

1шт.

15

82030730

SWITCH ASSY

1шт.
