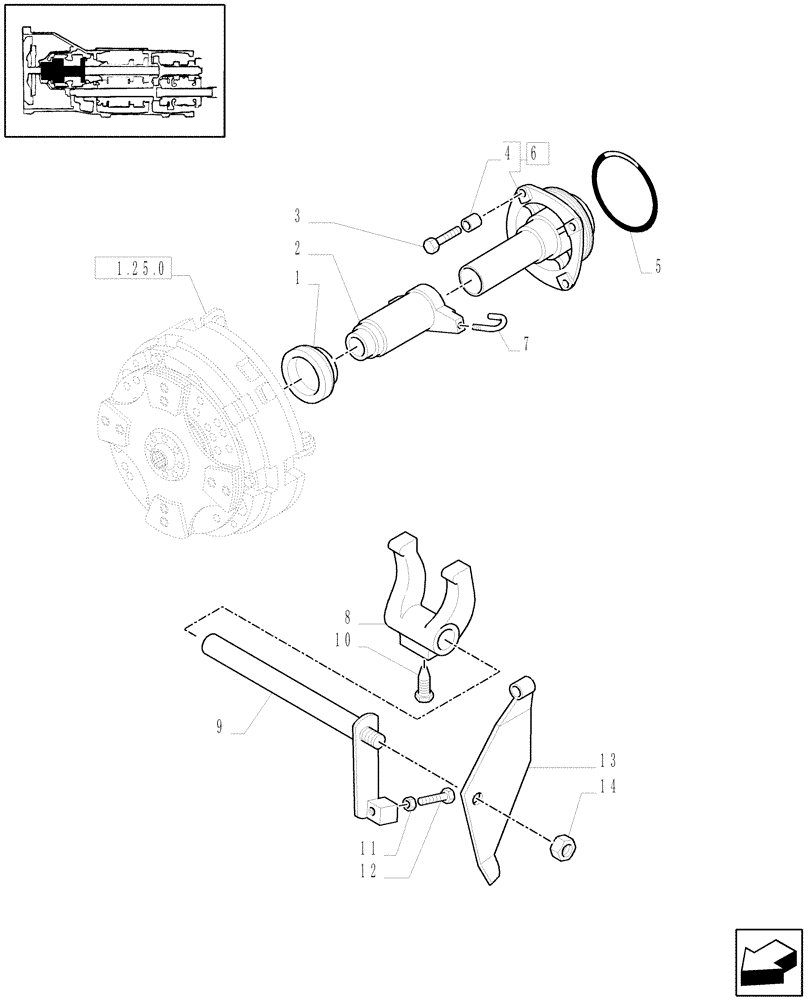

Запчасти Case IH JX1085C (1.26.2[01]) - LEVERS AND TIEROD (03) - TRANSMISSION

1

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

50 x 80 x 22

1шт.

2

5171609

BEARING CARRIER,Clutch

1шт.

3

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

4шт.

4

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

5

14462281

O-RING,6.237" ID x 0.103" Width

1шт.

6

5174545

COVER

1шт.

7

44011615

SPRING,15mm, Free Length

2шт.

8

5172487

YOKE,M16 x 1.5

1шт.

9

5178026

LEVER

1шт.

10

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16x1.5x32

1шт.

11

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

12

15232024

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8, Full Thd

1шт.

13

5170984

LEVER

1шт.

14

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

LH

1шт.
