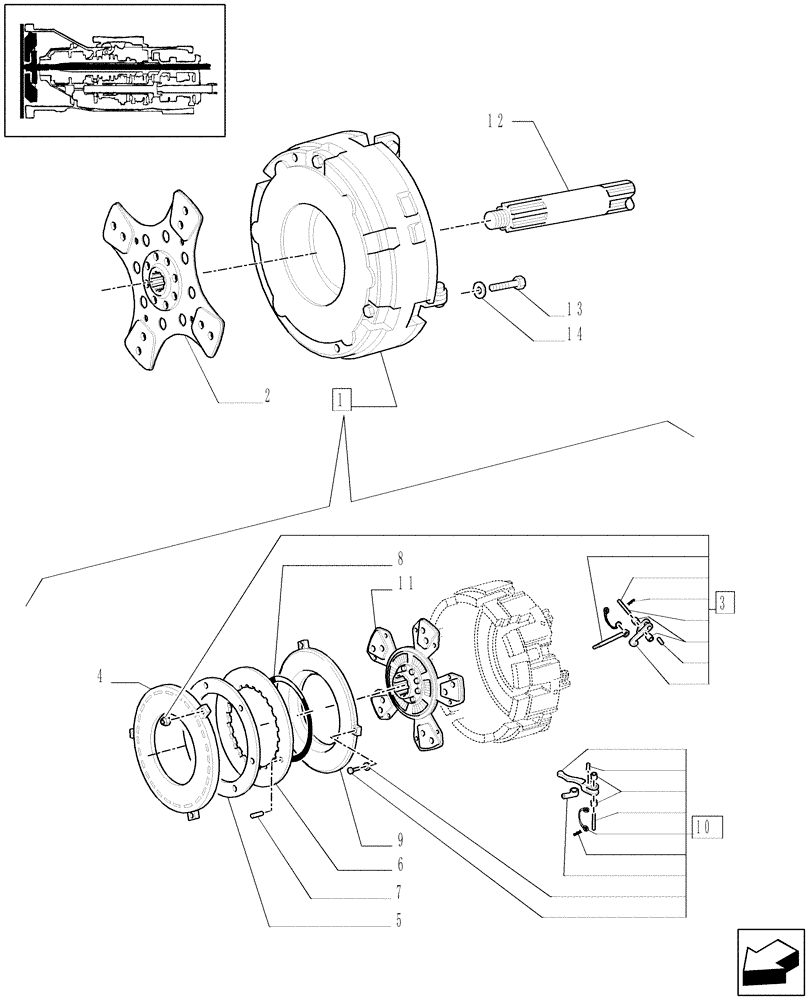

Запчасти Case IH JX1085C (1.25.0[01A]) - CLUTCH - D5949 (03) - TRANSMISSION

1

87732506

CLUTCH,327mm OD

1шт.

1

87732506R

REMAN-CLUTCH PLATE

JX1085C, JX1095C, BSN D5949

1шт.

1

87732506C

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

47134874

CLUTCH PLATE,280mm OD

1шт.

2

47134874R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

2

47134874C

CORE-CLUTCH PLATE

Return Part Number, JX1085C

1шт.

3

87594141

KIT

1шт.

4

87594144

PRESSURE RING

1шт.

5

87594147

STEEL PLATE

6шт.

6

87594145

SPRING

1шт.

7

87594149

PIN

1шт.

8

87594146

RING

1шт.

9

87594143

PRESSURE RING

1шт.

10

87594137

KIT

1шт.

11

87732496

CLUTCH PLATE,280mm OD

1шт.

11

87732496R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

11

87732496C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

5177717

SHAFT

1шт.

13

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.
