Запчасти Case IH JX1085C (1.21.1/04) - (VAR.030) FRONT HPL W/PTO & BRAKES W/MECH. CONTROL - SUPPORT (03) - TRANSMISSION

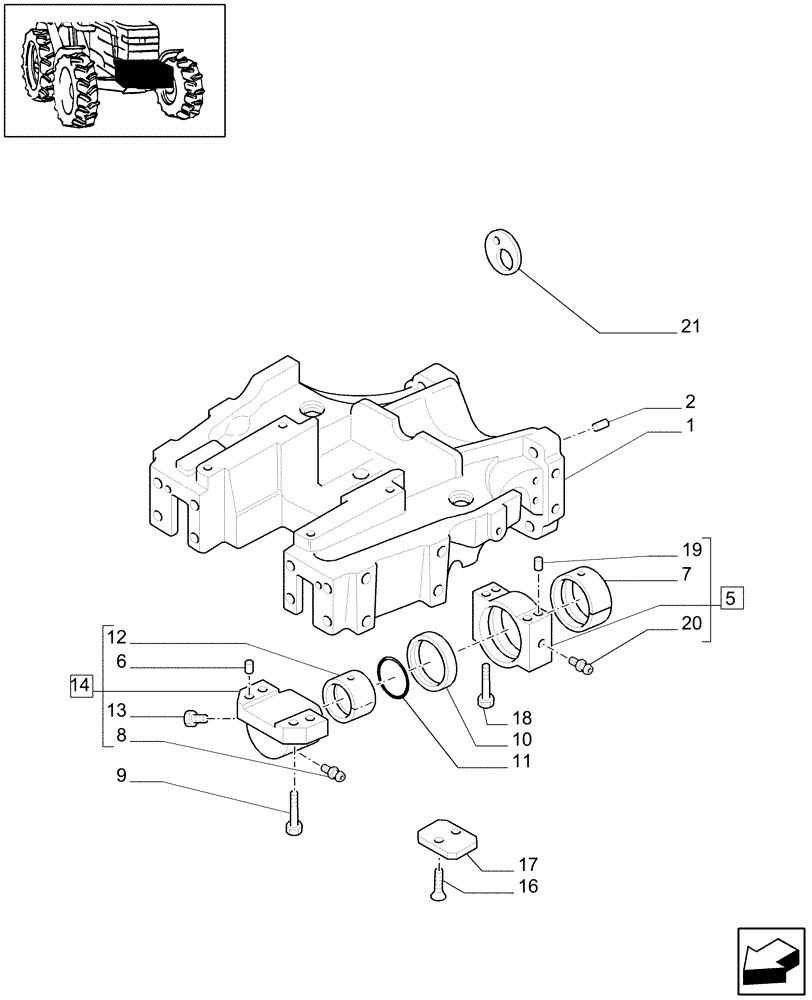

Схема запчастей Case IH JX1085C - (1.21.1/04) - (VAR.030) FRONT HPL W/PTO & BRAKES W/MECH. CONTROL - SUPPORT (03) - TRANSMISSION
14
18
11
21
13
16
2
20
9
12
10
7
5
1
19
8
6
17

Артикул

Название

Примечание

Количество

1

87303317

SUPPORT

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

4

15984834

SCREW,Hex, M18 x 1.5 x 80mm, Cl 10.9

4шт.

5

47131328

SUPPORT

Rear

1шт.

6

10837710

DOWEL,M10 x 25

2шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

1шт.

8

13407214

LUBE NIPPLE,M10 x 1

Conico

1шт.

9

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99x115x7.5

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 57 x 42

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

14

5140452

SUPPORT

Front

1шт.

15

5171790

PLUG,18mm, Black

18x12x24

16шт.

16

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

M10x1.5x25

4шт.

17

47131685

SUPPORT

2шт.

18

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

19

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

20

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

M10

1шт.

21

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

Выбрано товаров: 22
