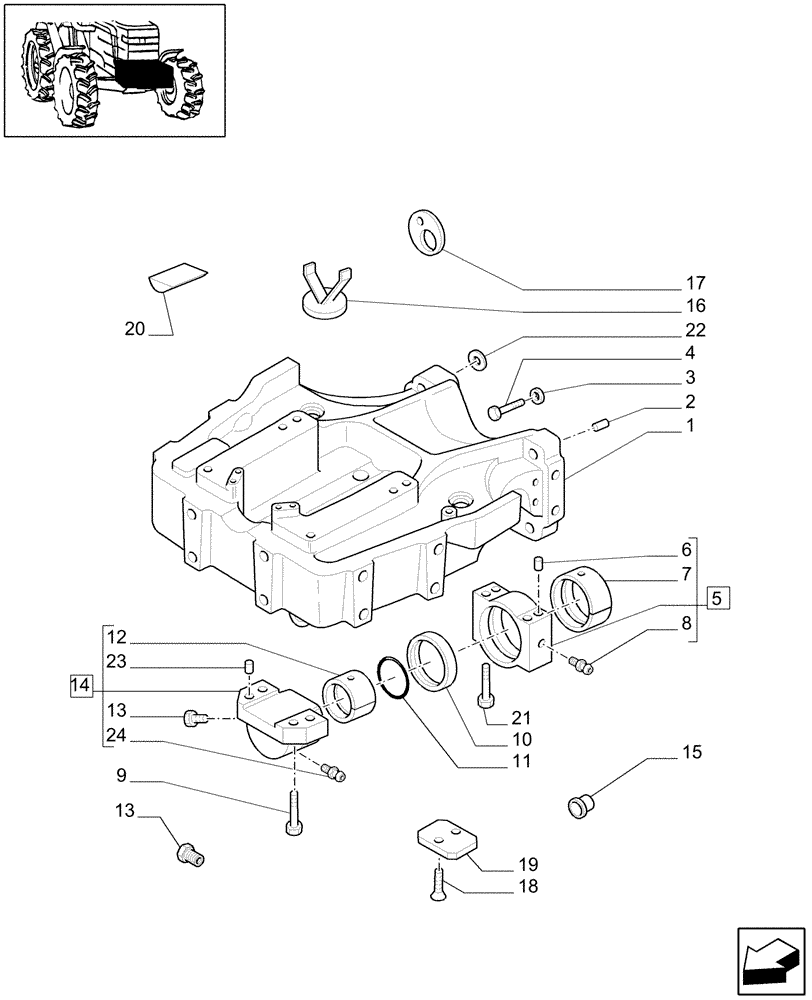

Запчасти Case IH JX1085C (1.21.1/01) - 4WD SUPPORT (03) - TRANSMISSION

1

87303426

SUPPORT

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20x38x5.2

4шт.

4

15989134

BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9

2шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20x1.5x120

2шт.

5

47131328

SUPPORT

Rear

1шт.

6

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

45°

1шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

4шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99x115x7.5

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

D=52

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

2шт.

14

5140452

SUPPORT

Front

1шт.

15

5171790

PLUG,18mm, Black

18x12x24

26шт.

16

5120218

GRILLE

1шт.

17

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

18

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

M10x1.5x25

4шт.

19

47131685

SUPPORT

2шт.

20

47125763

PLUG

1шт.

21

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

22

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

22

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

22

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

22

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

22

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.

23

10837710

DOWEL,M10 x 25

2шт.

24

13407211

LUBE NIPPLE,M10 x 1

1шт.
