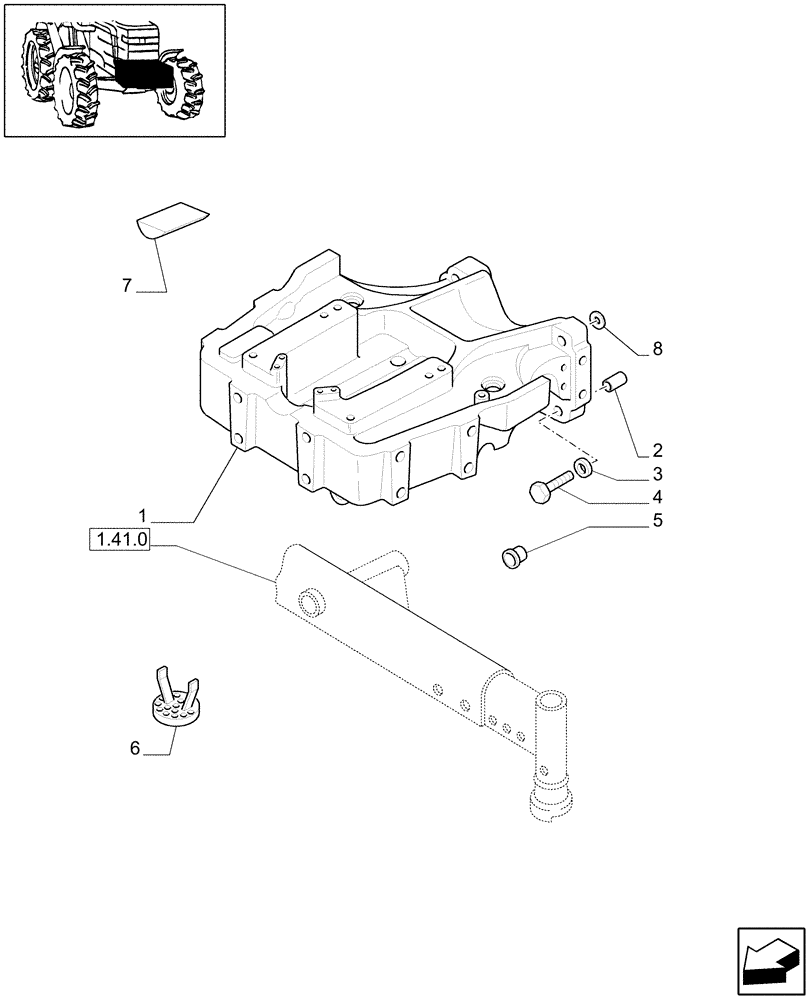

Запчасти Case IH JX1085C (1.21.1) - 2WD SUPPORT (03) - TRANSMISSION

1

87303425

SUPPORT

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20x38x5.2

4шт.

4

15989134

BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9

2шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M10x1.5x120

2шт.

5

5171790

PLUG,18mm, Black

18x12x24

22шт.

6

5120218

GRILLE

1шт.

7

47125763

PLUG

1шт.

8

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

8

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

8

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

8

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

8

47136468

SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black

Black

1шт.
