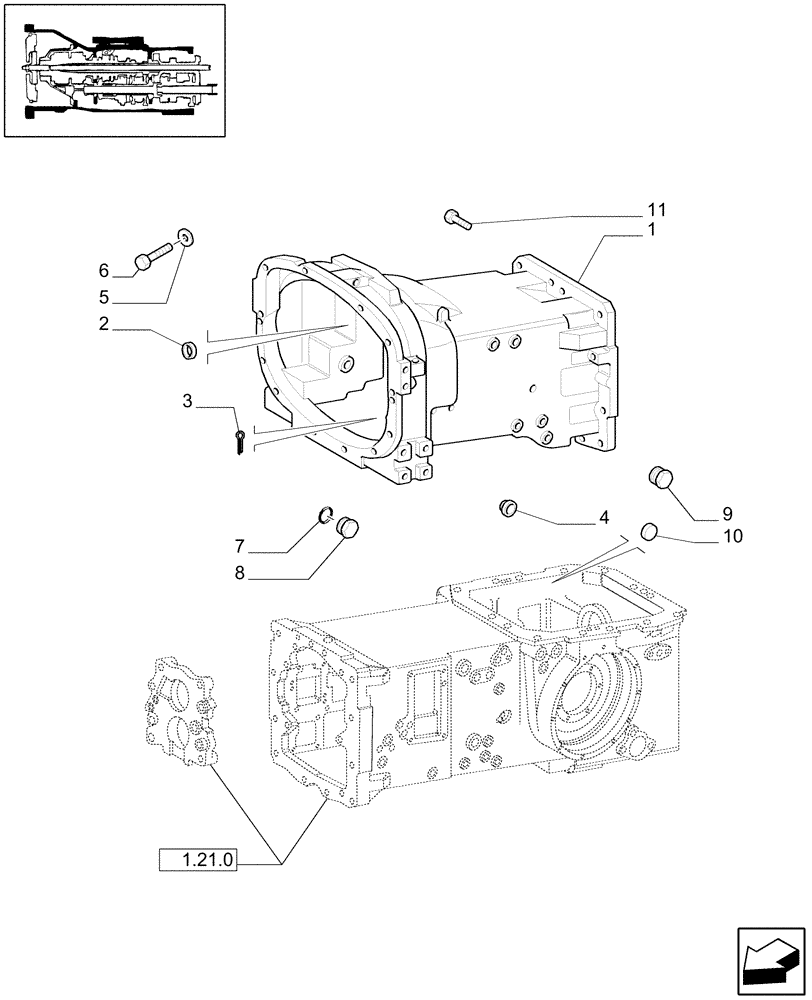

Запчасти Case IH JX1085C (1.21.0/03) - (VAR.270) DUAL COMMAND (2 SPEED POWER SHIFT) 32X16 (30KM/H) W.HEAT EXCH. AND ADJ. COLUMN-COVER (03) - TRANSMISSION

1

5178510

CLUTCH HOUSING

1шт.

2

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

2шт.

3

10798201

COTTER PIN,M6.3 x 32

1шт.

4

5171614

PLUG,27mm OD

D=27

2шт.

5

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

11шт.

6

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.25x45

11шт.

7

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x28x1.5

1шт.

8

14328601

PLUG,M18, Tapered

2шт.

9

10300840

PLUG

M18x1.5

1шт.

10

14329101

PLUG,M30, Tapered

1шт.

11

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
