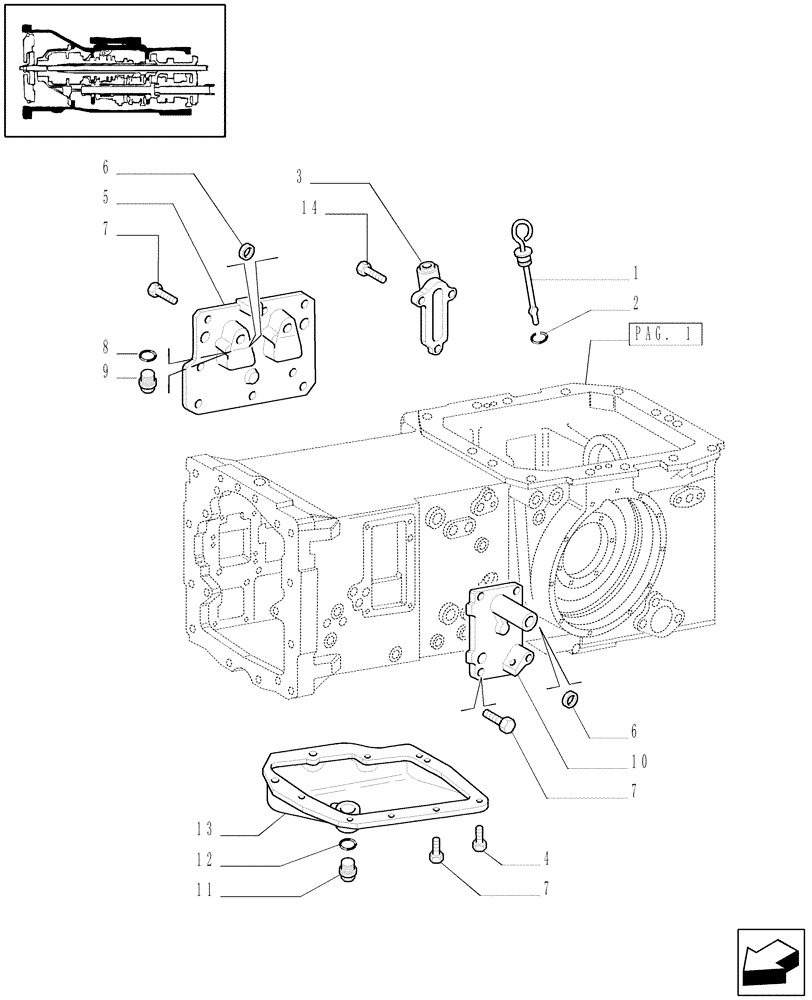

Запчасти Case IH JX1085C (1.21.0[02]) - TRACTOR BODY (03) - TRANSMISSION

1

5182954

DIPSTICK,165mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

5177062

NECK FILLER

1шт.

4

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2WD

1шт.

5

87346017

COVER

1шт.

6

5168241

SEAL,22mm ID x 32mm OD x 9mm Thk

22x32x8

3шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

Q.ty 19 for 2WD, 12 for 4WD

1шт.

8

4858609

WASHER,Brass

16x22x1.5

2шт.

8

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14x20x1.5

3шт.

9

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

9

10300714

PLUG,M16 x 1.5 x 14

2шт.

9

10305171

PLUG,M22 x 1.5 x 21

1шт.

10

5168149

COVER

1шт.

11

5151213

PLUG,M35 x 1.5

M35x25, 2WD

1шт.

12

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

13

5172917

COVER

2WD

1шт.

14

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5896

3шт.
